MX2020 DC Power Distribution Module (-48 V) LEDs
Each DC PDM faceplate contains one bicolor LED for each of the seven or nine input power feeds (–48
V), indicating the correct or incorrect polarity connection of each feed. SeeTable 30 on page 111.
Figure 48 on page 110 shows the –48 V DC PDM LEDs.
NOTE: The –48 V DC PDM or PSM will have –48V written on the faceplate.

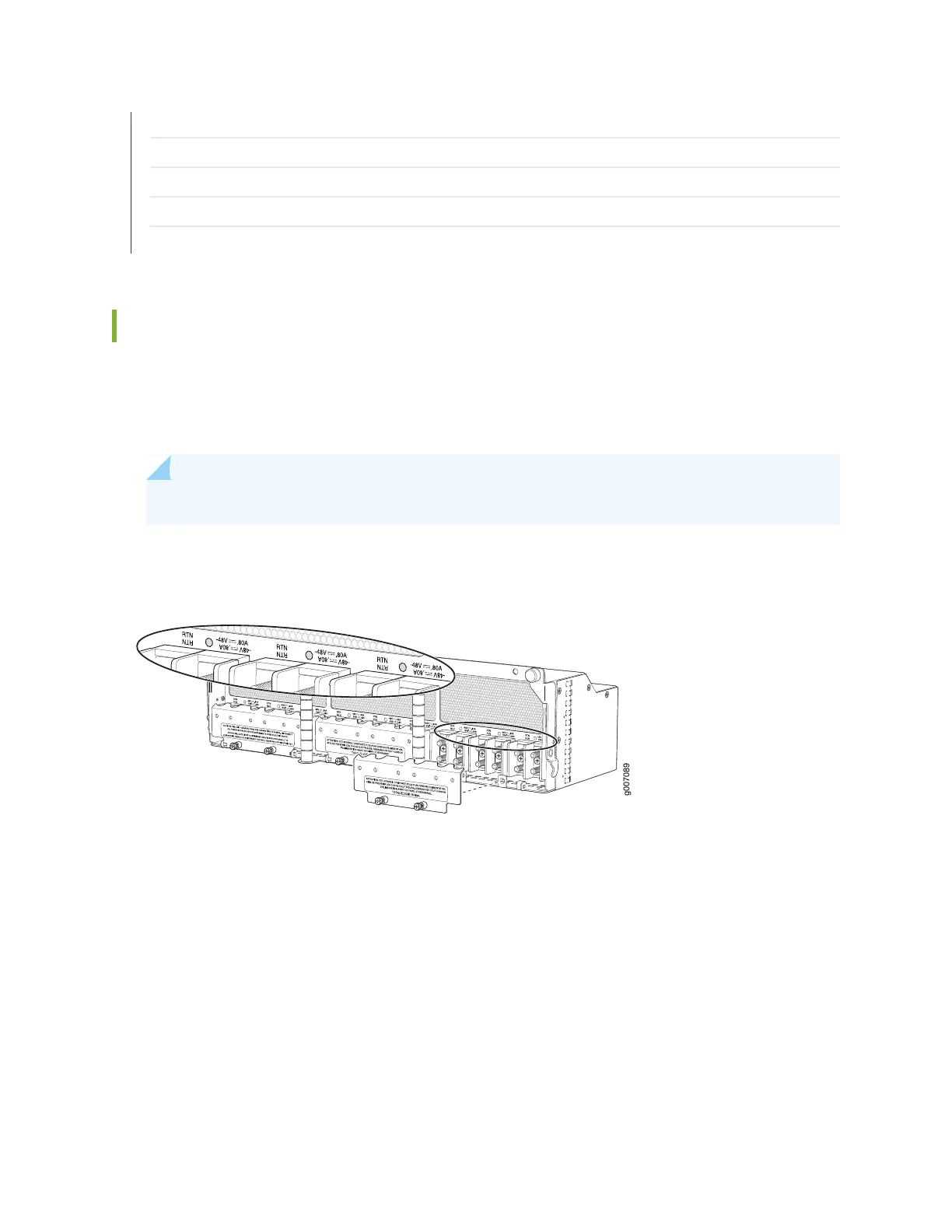

Figure 48: DC Power Distribution Module LEDs
