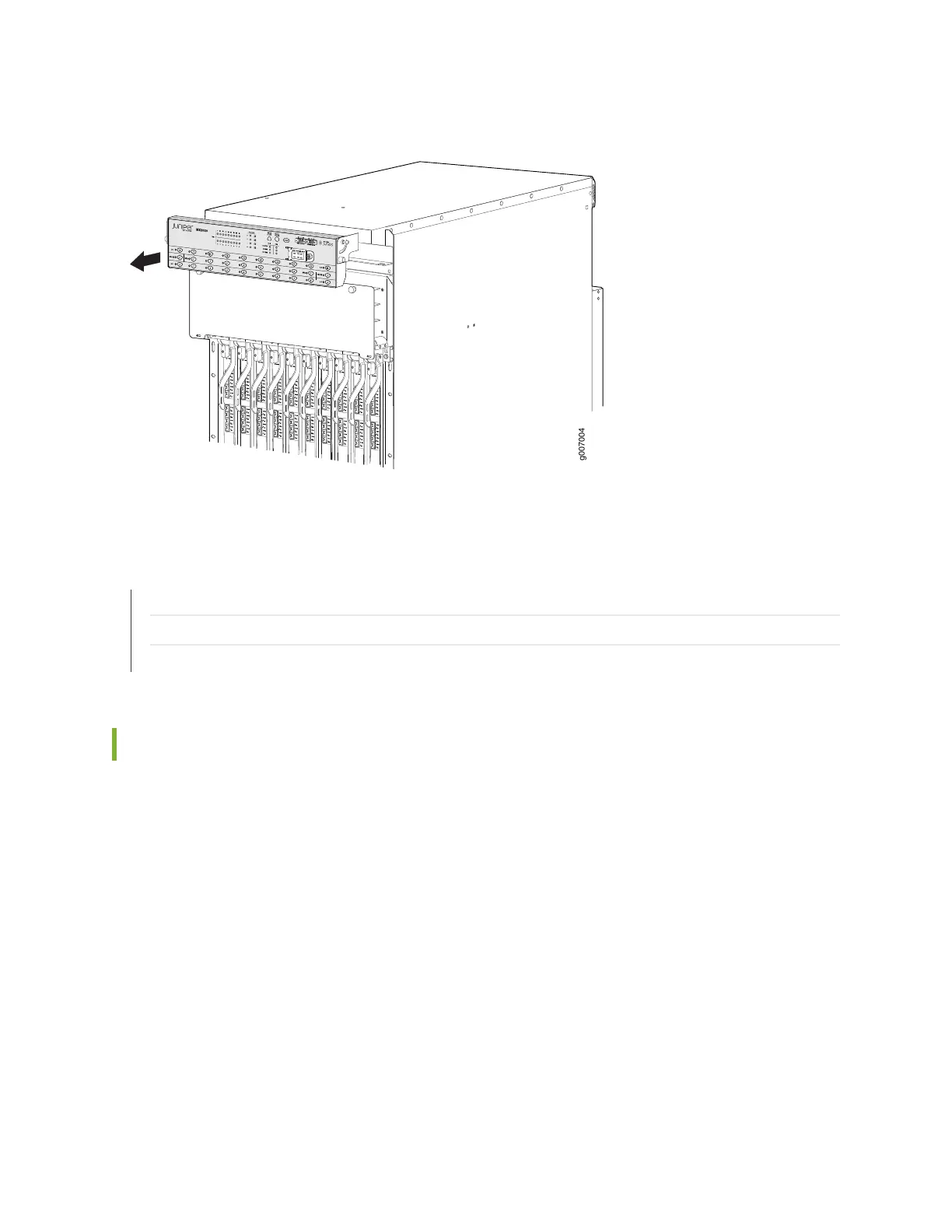

Figure 250: Removing the Craft Interface
RELATED DOCUMENTATION
MX2020 Craft Interface Description | 31
Maintaining and Verifying the Status of the MX2020 Craft Interface | 589
Installing the MX2020 Craft Interface | 582
Installing the MX2020 Craft Interface
To install the craft interface (see Figure 251 on page 583):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Grasp the craft interface with one hand, and hold the bottom edge of the craft interface with the other
hand to support its weight.
3. Orient the ribbon cable so that it plugs into the connector socket. The connector is keyed and can be
inserted only one way.
4. Align the bottom of the craft interface with the sheet metal above the card cage, and press it into place.
582
