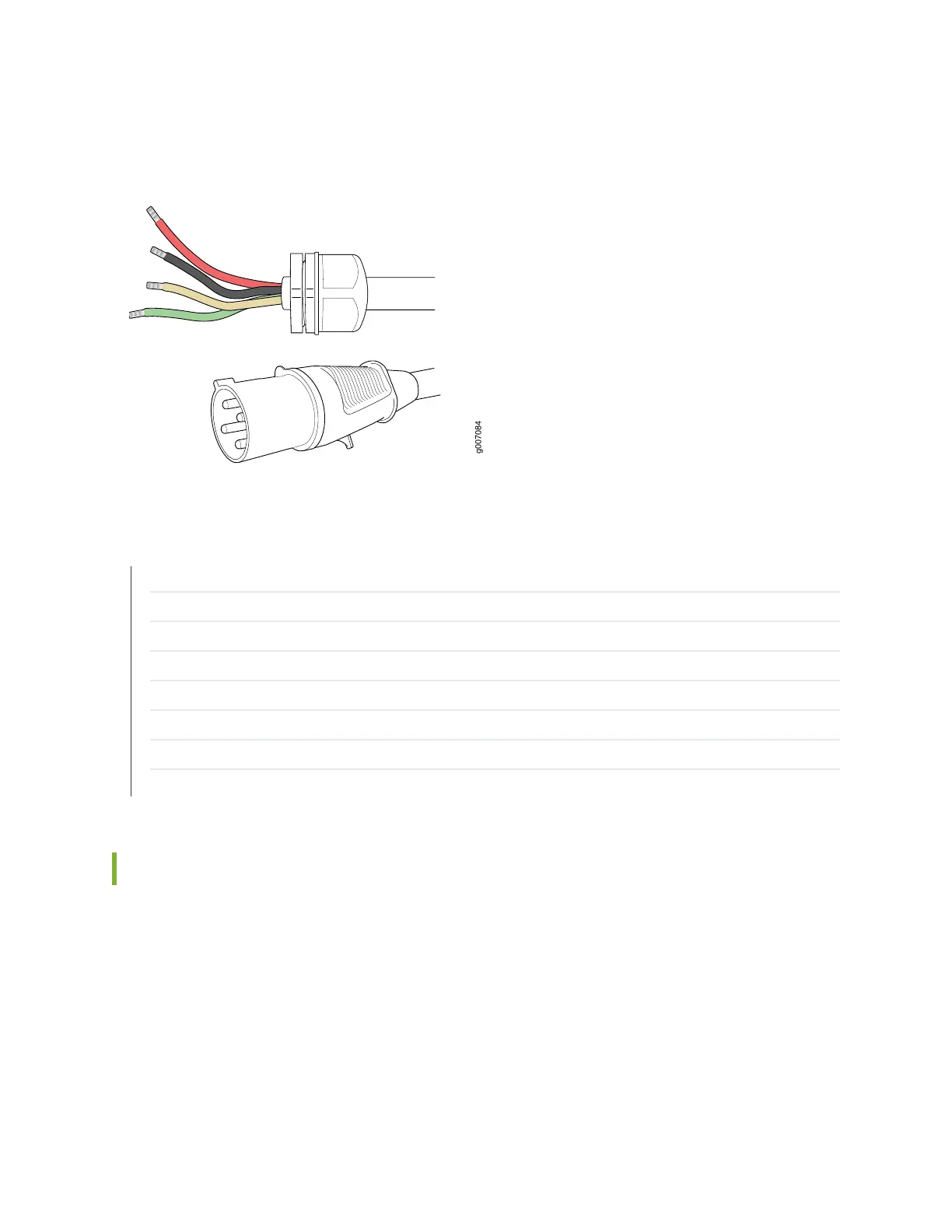

Figure 37 on page 98 shows the three-phase delta AC power cord.
Figure 37: Three-Phase Delta AC Power Cord
RELATED DOCUMENTATION
MX2010 Power System Description
MX2020 Power Subsystem Description | 91
Maintaining the Power Supply Modules on the MX2000 Line of Routers | 418
Troubleshooting the MX2000 Router Power System | 686
MX2010 AC Power Requirements
MX2020 AC Power Requirements | 167
MX2000 AC Power System Electrical Specifications | 179
MX2000 AC Power Cord Specifications | 176
MX2000 Three-Phase Wye AC Power Distribution Module Description
Each three-phase wye AC PDM weighs approximately 12 lb (5.44 kg). A metal wiring compartment contains
two AC terminal blocks and ground labeled GND. One AC terminal block consists of three input terminals
that serve six PSMs and the second terminal block serves three PSMs. The terminal block on the far left
is labeled A1, B1, C1, and N1 (bottom to top). The second terminal block is labeled A2, B2, C2, and N2
(bottom to top). The PDMs are located at the rear of the chassis in slots PDM0/Input0 through
PDM1/Input1, (bottom to top). LEDs provide the status of the PDM. Figure 38 on page 99 shows the
three-phase wye AC PDM.
98
