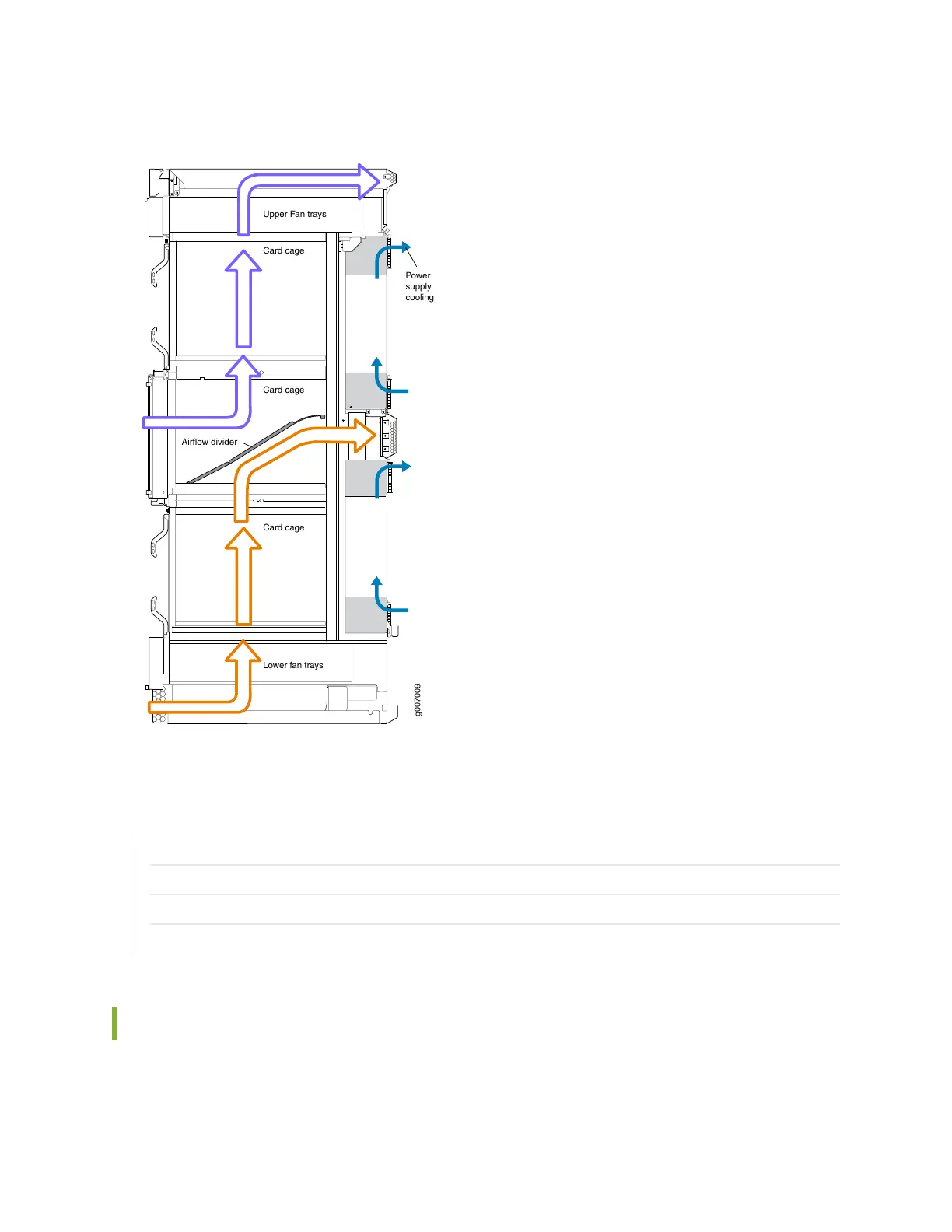

Figure 57: Airflow Through Chassis
g007009
Lower fan trays
Upper Fan trays
Card cage
Power
supply
cooling
Card cage
Airflow divider
Card cage
RELATED DOCUMENTATION
Clearance Requirements for Airflow and Hardware Maintenance for the MX2020 Router | 133
MX2020 Cabinet Size and Clearance Requirements | 133
MX2020 Rack Requirements | 130
MX2020 Rack-Mounting Hardware | 42
MX2020 Router Environmental Specifications
Table 38 on page 138 specifies the environmental specifications required for normal router operation. In
addition, the site should be as dust-free as possible.
137
