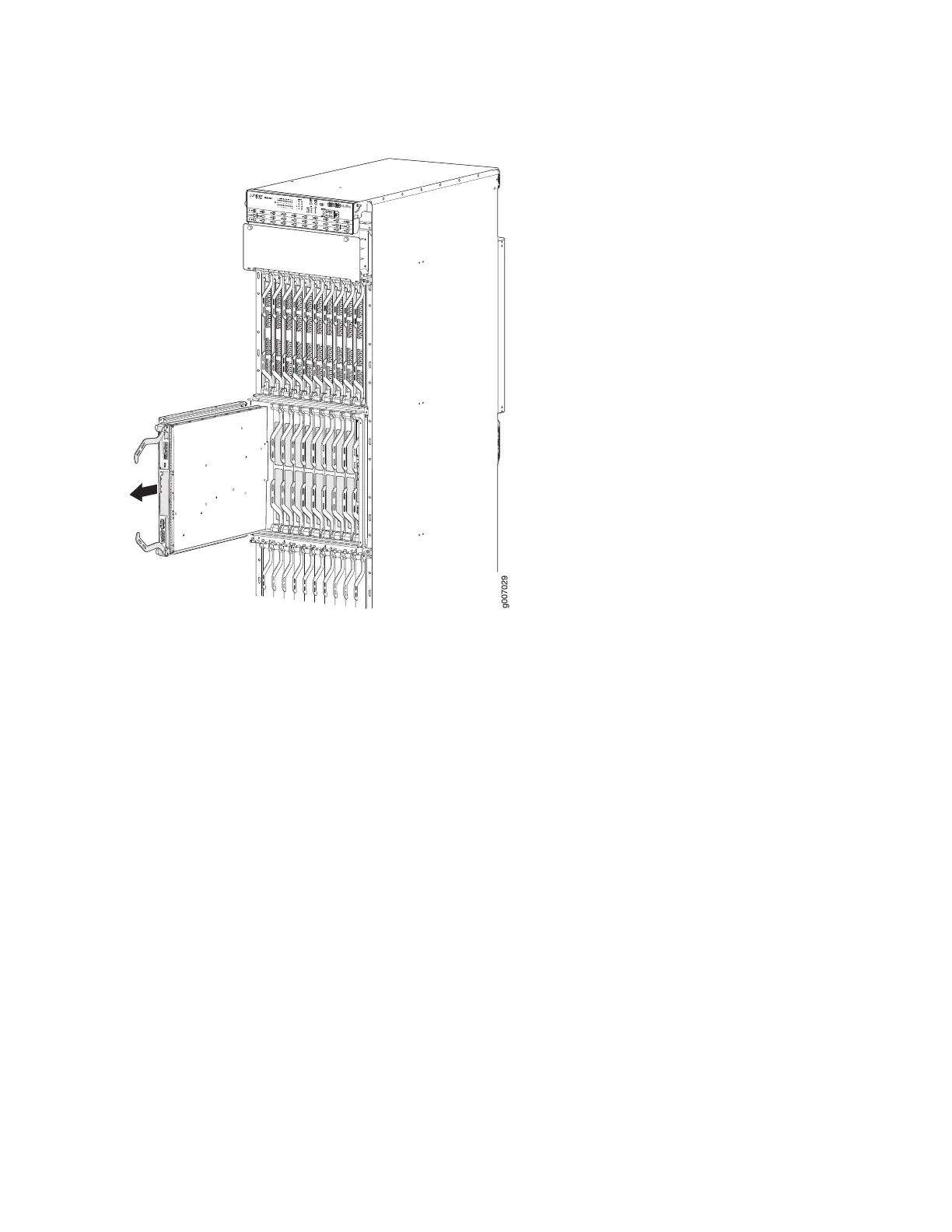

Figure 231: Removing a CB-RE
g007029
19
0
OK/FAIL
OK/F
AIL
OK/FAIL
OK/F
AIL
OK/FAIL
OK/FAIL
OK/FAIL
OK/FAIL
Installing the REMX2K-X8-64G CB-RE
To install the new REMX2K-X8-64G CB-RE (see Figure 228 on page 504):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Remove the CB-RE from the electrostatic bag.
3. Carefully align the sides of the CB-RE with the guides inside the chassis.
4. Slide the CB-RE into the chassis until you feel resistance, carefully ensuring that it is correctly aligned.
5. Grasp both ejector handles, and gently close them inward simultaneously until the CB-RE is fully seated.
6. Check the LEDs on the CB-RE faceplate to verify that it is functioning normally.
•
The green ONLINE LED should blink green initially and light steadily a few minutes after the CB-RE
is installed.
518
