Removing the MX2020 Lower Extended Cable Manager
To remove the lower MX2020 extended cable manager:
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. To remove the cover, loosen the two captive screws on the extended cable manager cover. Set the
extended cable manager cover aside.
3. Remove the eight screws that secure the extended cable manager to the chassis as shown in
Figure 276 on page 625.
4. Pull the extended cable manager away from the chassis.

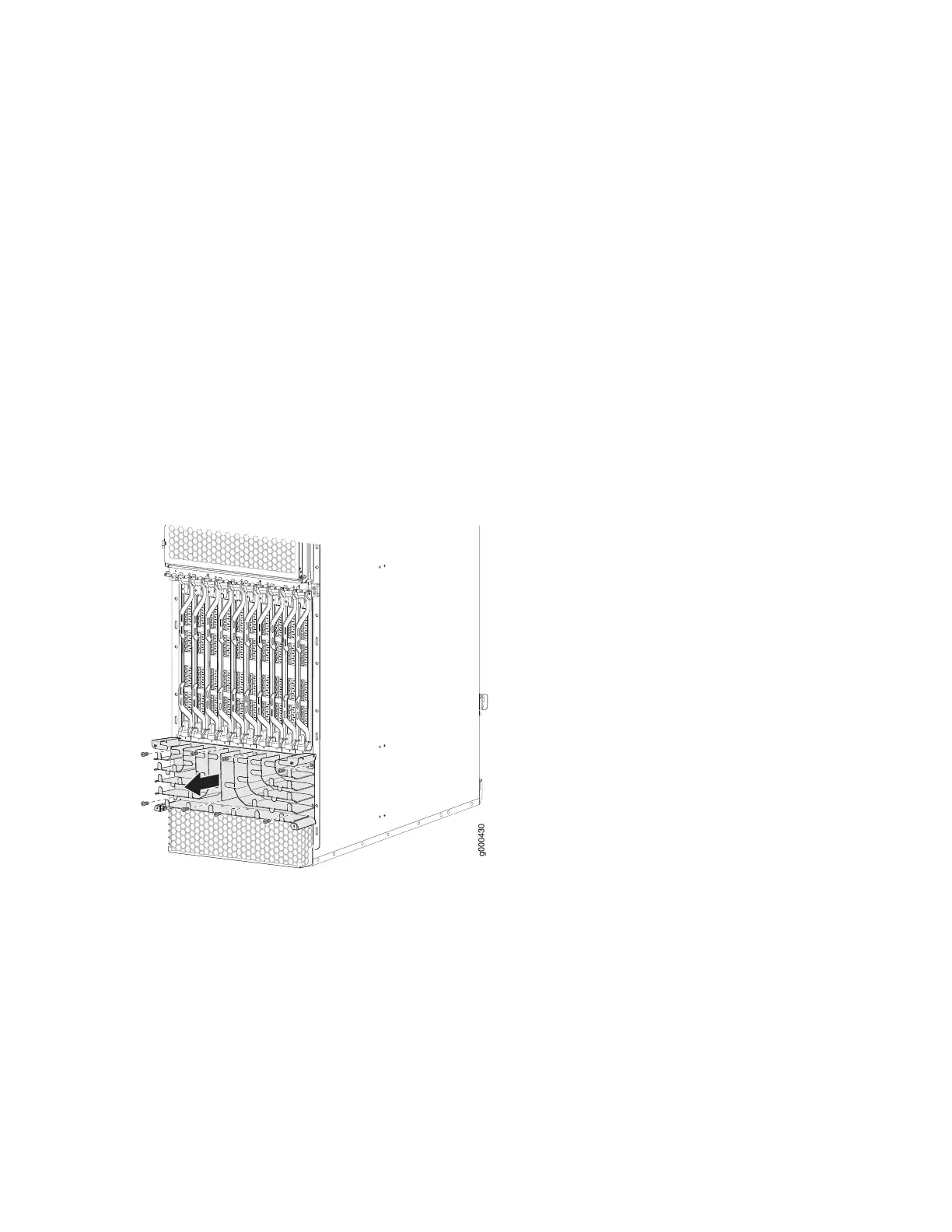

Figure 276: Removing the Extended Lower Cable Manager
Removing the MX2020 Extended DC Cable Manager
To remove the extended DC cable manager (see Figure 277 on page 626):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Using a Phillips (+) screwdriver (number 1 or 2), loosen the two captive screws on the DC cable manager.
