Juniper MX2020 - Installing an MX2020 MIC

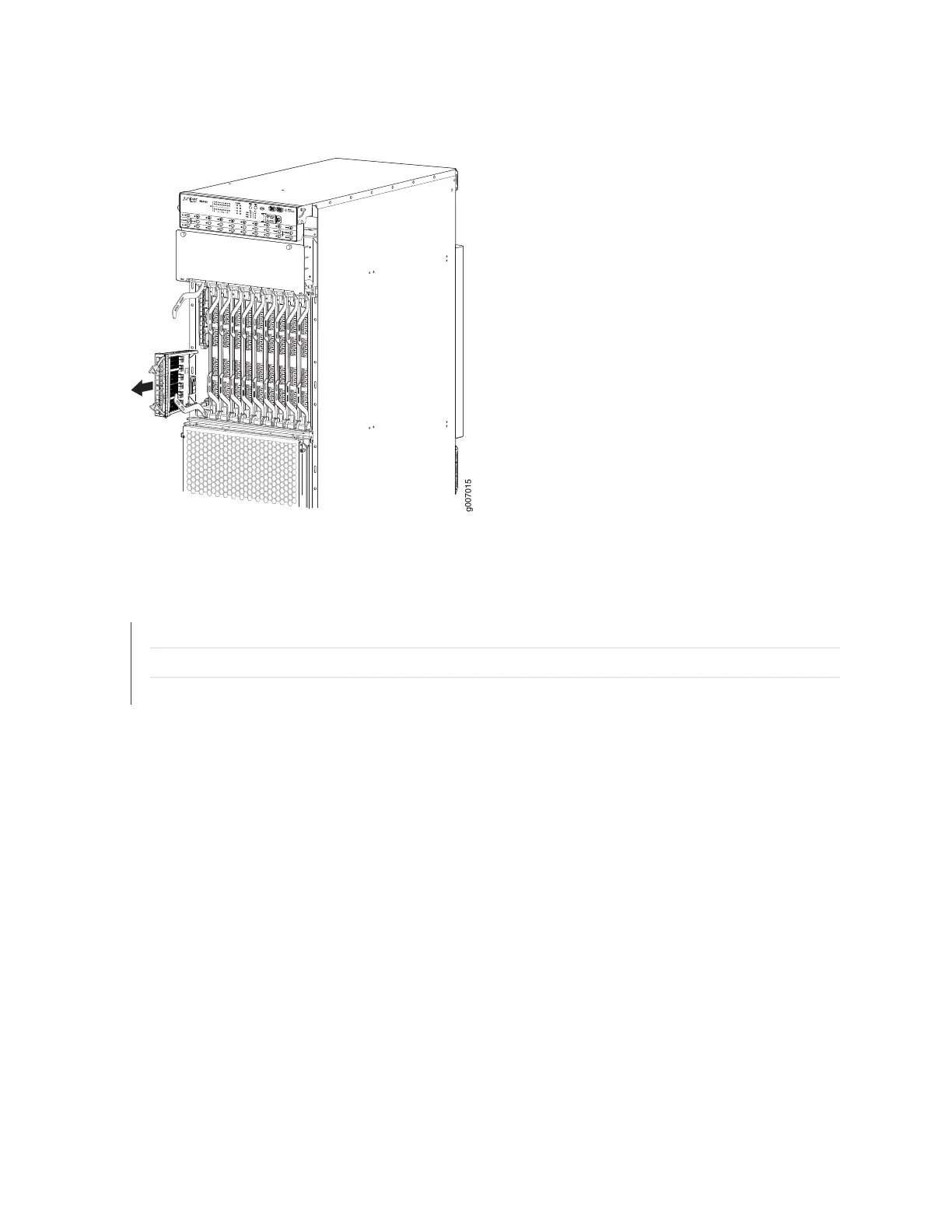

Figure 241: Removing a Single-Wide MIC
19
0
g007015
SEE ALSO
Prevention of Electrostatic Discharge Damage | 770
Installing an MX2020 MIC | 555
Installing an MX2020 Dual-Wide MIC | 558
Installing an MX2020 MIC
To install a MIC (see Figure 243 on page 558):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. If you have used a dual-wide MIC and are now replacing it with two single-wide MICs, install the septum
(see Figure 242 on page 556 ):
a. Place the MPC on a flat surface (if necessary, remove the MPC from the ADC as described in
“Removing an MX2020 MPC from the Adapter Card” on page 539.
b. Position the septum in the center of the MPC so that it lines up with holes labeled S on the top of
the MPC.
c. Insert a screw into each of the two holes labeled S, and then tighten them completely.
