Removing the MX2020 Upper Extended Cable Manager
To remove the upper MX2020 extended cable manager:
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Remove the extended craft interface as described in Removing the MX2020 Extended Craft Interface.
3. To remove the cover, loosen the two captive screws on the extended cable manager cover. Set the
extended cable manager cover aside.
4. Remove the eight screws that secure the extended cable manager to the chassis as shown in
Figure 275 on page 624.
5. Pull the extended cable manager away from the chassis.

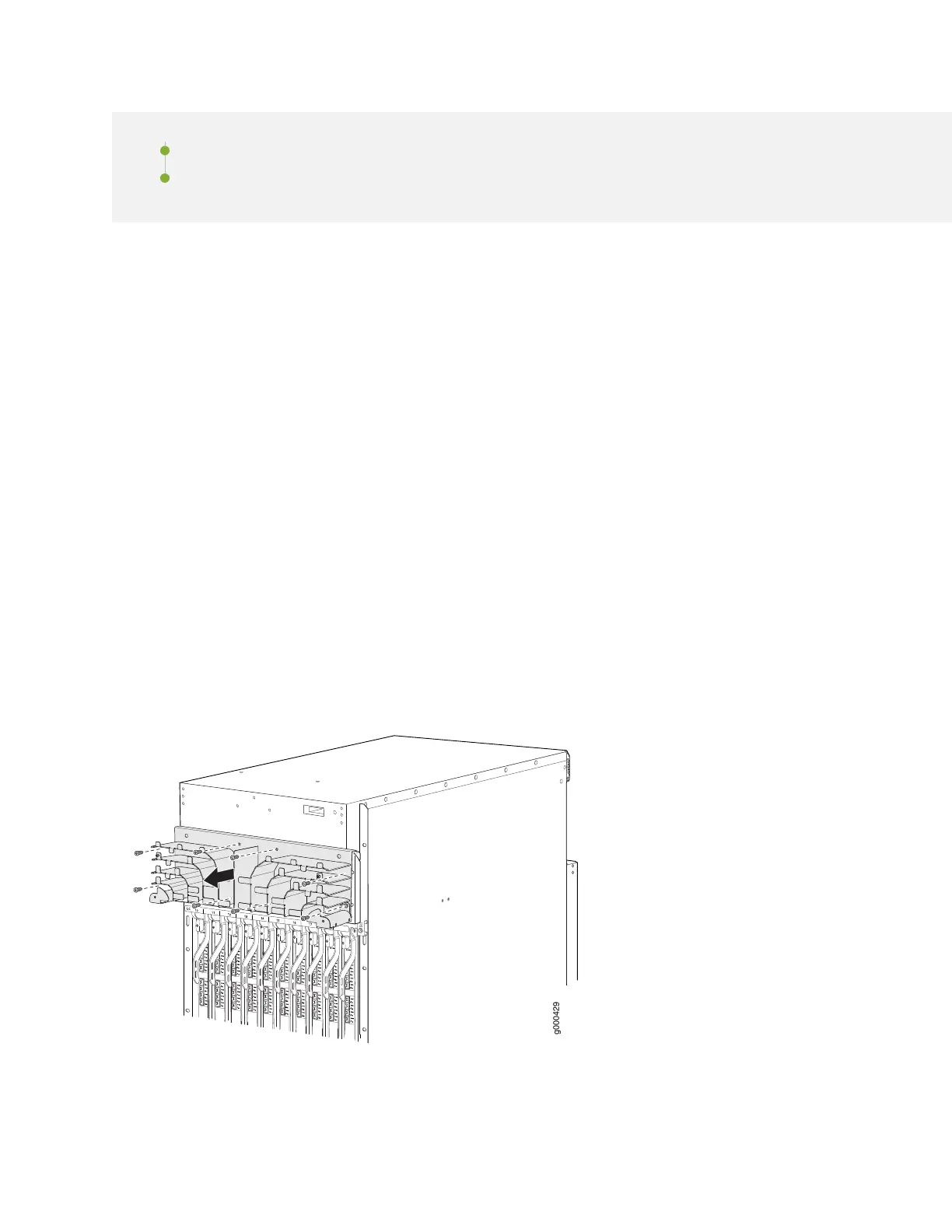

Figure 275: Removing the Extended Upper Cable Manager
