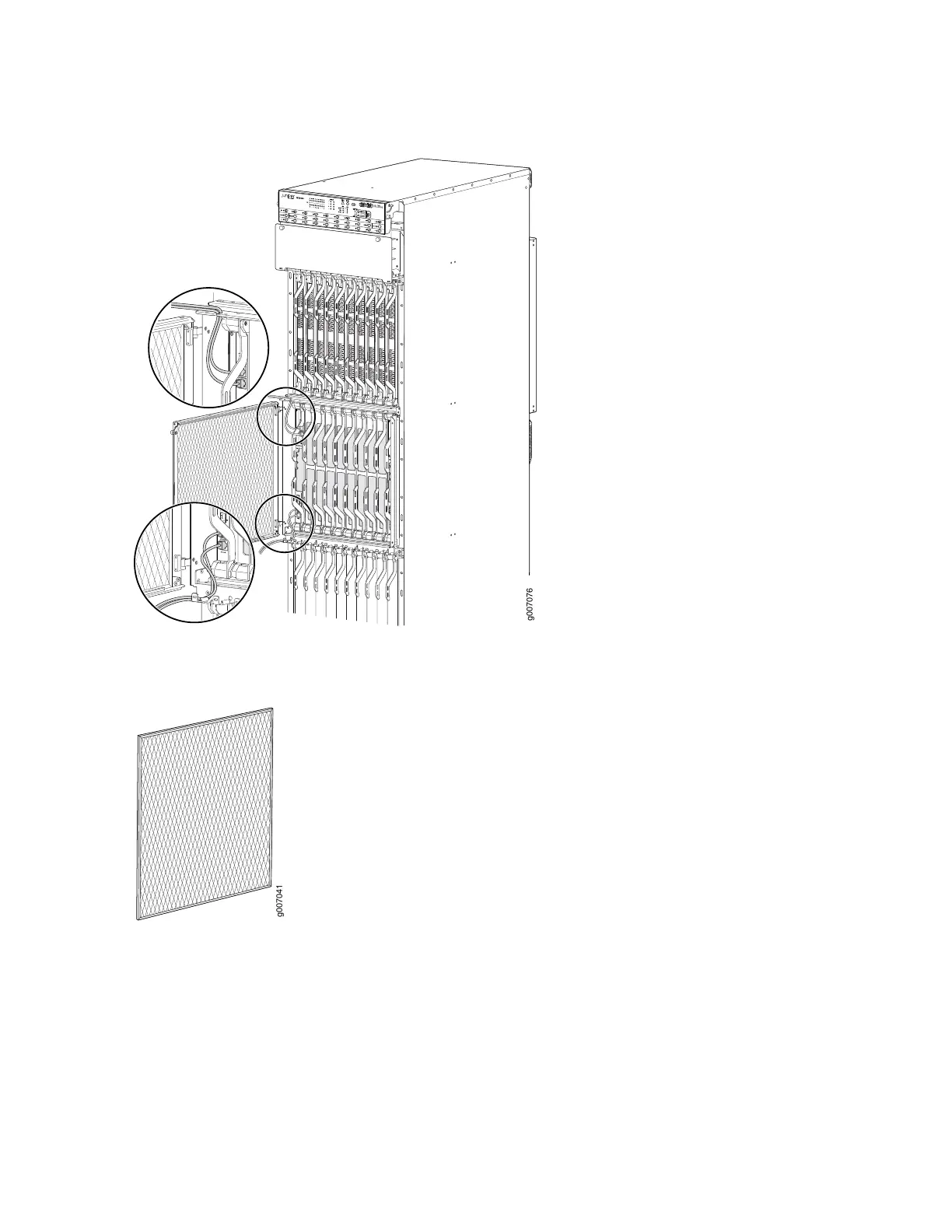

Figure
16:
Middle
Card-Cage
Cable
Manager
g007076
19
0
OK/F
AIL
OK/F
AIL
OK/F
AIL
OK/F
AIL
OK/F
AIL
OK/F
AIL
OK/F
AIL
OK/F
AIL
Figure
17:
Middle
Card-Cage
Air
Filter
g007041
Extended
Cable
Management
System
The
extended
cable
management
system
consists
of
the
following
components:
•
Extended
upper
cable
manager—MX2000-CBL-TOP-XT-S
•
Extended
lower
cable
manager—MX2000-CBL-BTM-XT-S
40
64
66
