Extended DC cable manager—MX2020-DC-CBL-MGR-XT-S
The extended cable management system provides additional support to route and secure a large number
of cables away from the front of the MPCs, and MICs (see Figure 18 on page 41).
The extended DC cable management system provides additional support to route and secure a large
number of cables away from the rear of the PDMs (see Figure 18 on page 41).
You can use cable strips or other ties to gently secure the cables in the upper and lower extended cable
managers. To secure the cables in place, loop the tie through the cable anchor and secure the tie.

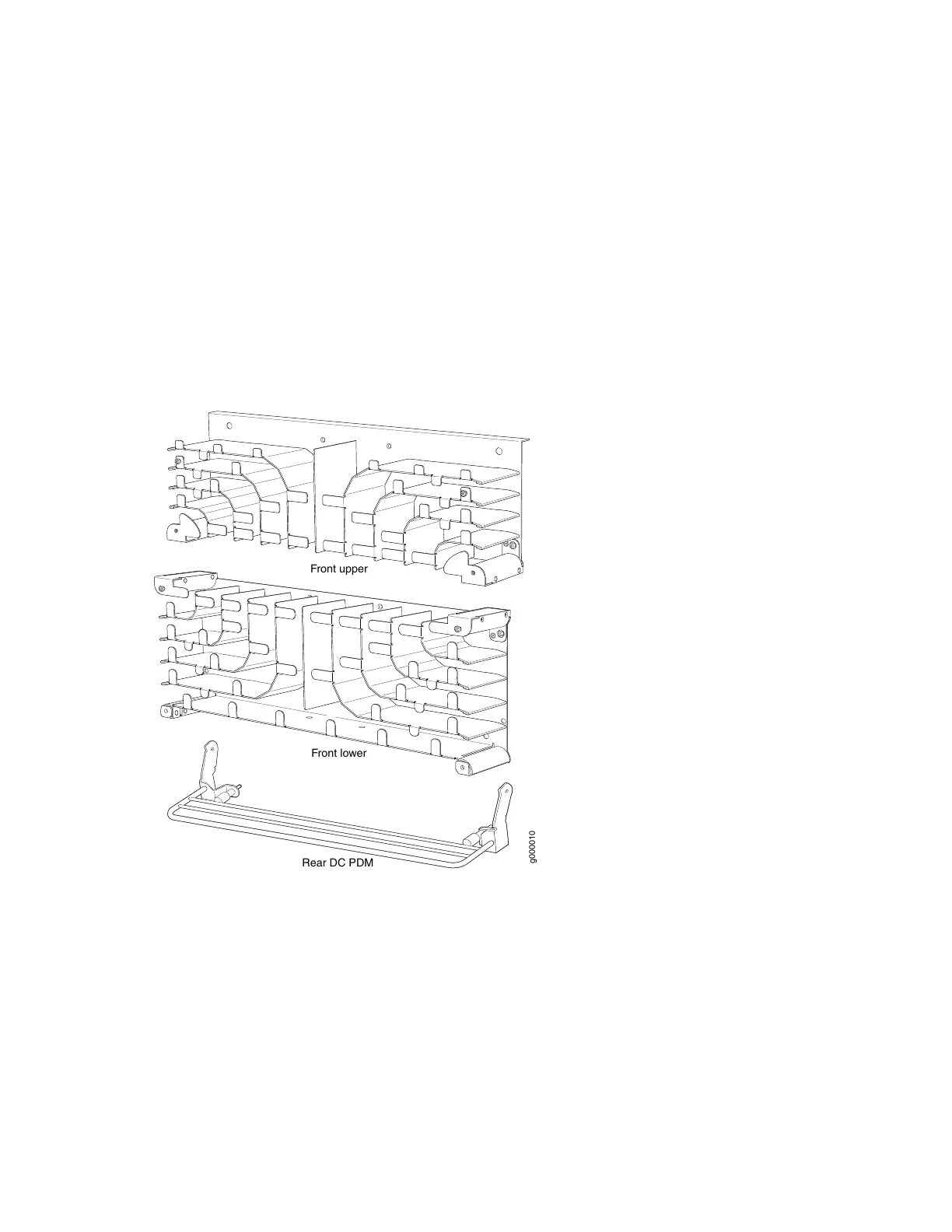

Figure 18: MX2020 Extended Cable Managers
g000010
Front upper
Front lower
Rear DC PDM
