Installing an MX2020 Adapter Card (ADC)
An ADC weighs up to 15 lb (6.80 kg). Be prepared to accept its full weight.
To install an ADC (see Figure 238 on page 543):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Take each ADC to be installed out of its electrostatic bag, and locate the slot in the card cage in which
you plan to install the ADC..
3. Ensure that the ADC is right-side up, with the text on the faceplate facing upward.
4. Lift the ADC into place, and carefully align the sides of the ADC with the guides inside the card cage.
5. Slide the ADC all the way into the card cage until you feel resistance.
6. Grasp both ejector handles, and gently close them inward simultaneously until the ADC is fully seated.

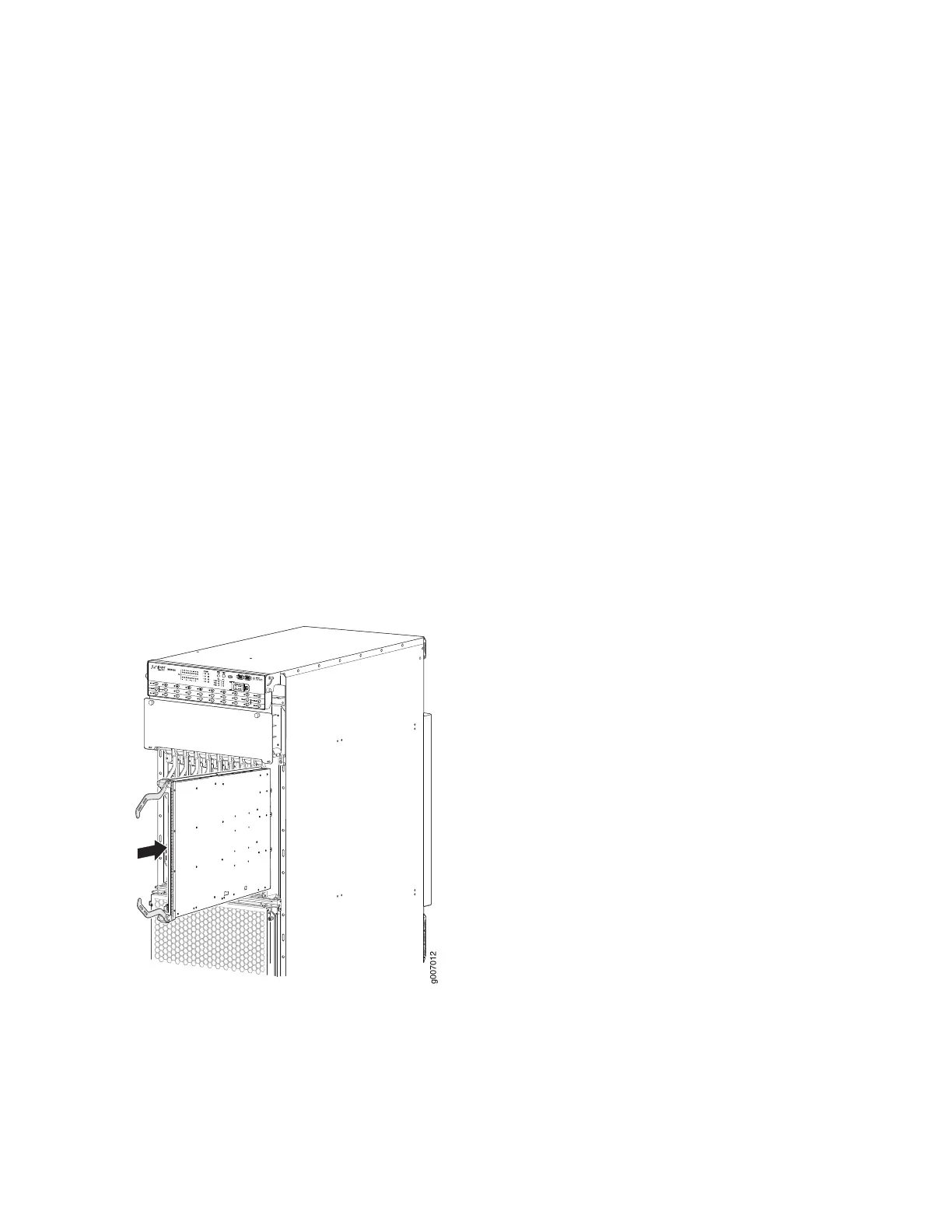

Figure 238: Installing an ADC
10
11
12
13
14
15
16
17
18
19
0
g007012
7. Issue the following CLI command to bring the ADC online:
user@host>request chassis fdc slot slot-number online
543
