2. Plug one end of the Ethernet cable (Figure 149 on page 334 shows the connector) into the MGMT port
on the CB-RE interface. Figure 148 on page 334 shows the port. Table 90 on page 334 describes the
Ethernet ports.
3. Plug the other end of the cable into the network device.

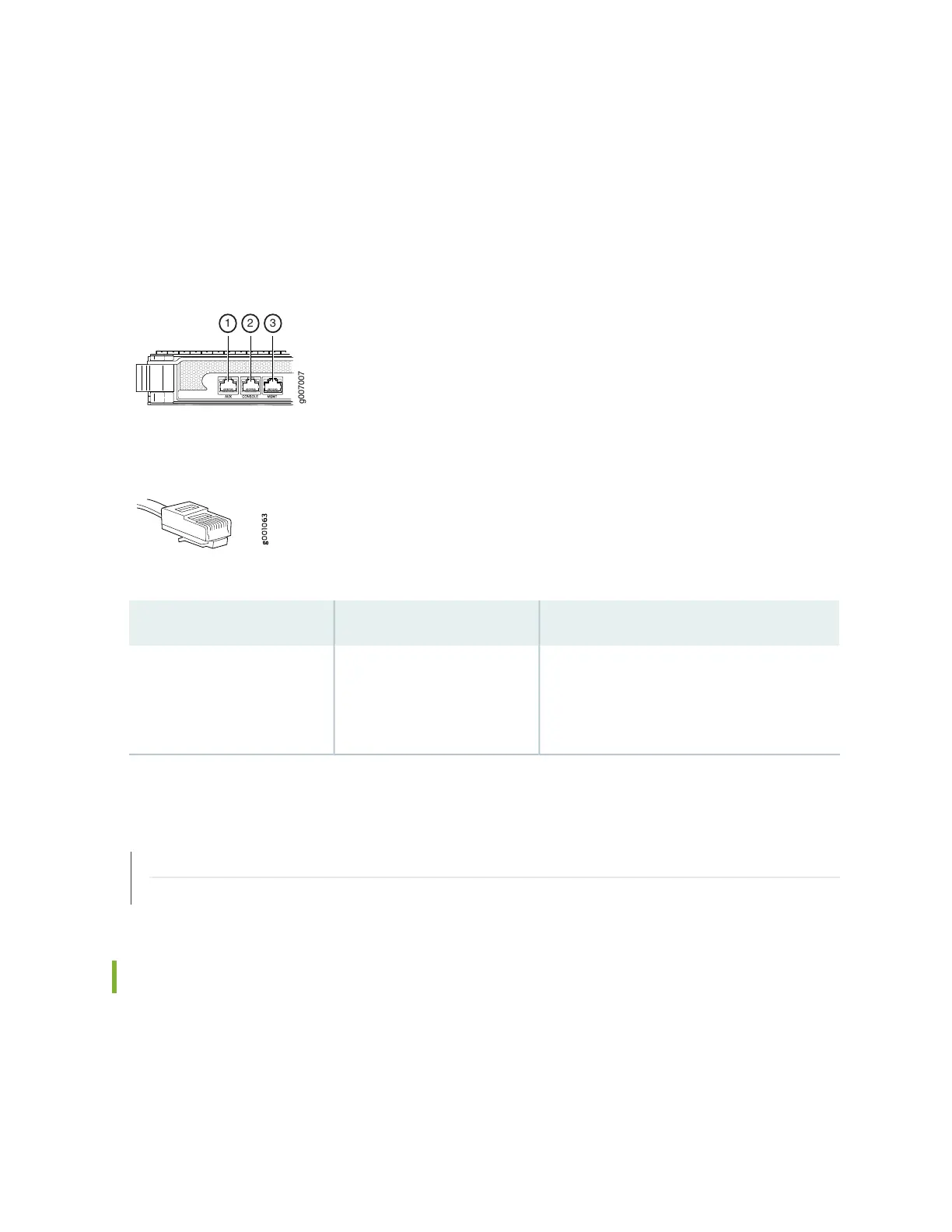

Figure 153: Out-of-Band Management Port
Figure 154: Out-of-Band Management Cable Connector
Table 93: Out-of-Band Management Port on the MX2020 CB-RE
DescriptionLabelFunction No.
Dedicated management channel for device
maintenance. It is also used for system
administrators to monitor and manage the
MX2020 remotely.
MGMT3
RELATED DOCUMENTATION
Connecting the MX2020 Router to a Console or Auxiliary Device | 334
Connecting an MX2020 Router to an External Alarm-Reporting Device | 336
Connecting the MX2020 Router to a Console or Auxiliary Device
To use a system console to configure and manage the Routing Engine, connect it to the appropriate
CONSOLE port on the CB-RE interface. To use a laptop, modem, or other auxiliary device, connect it to
the AUX port on the CB-RE interface. Both ports accept a cable with an RJ-45 connector. One serial cable
338
