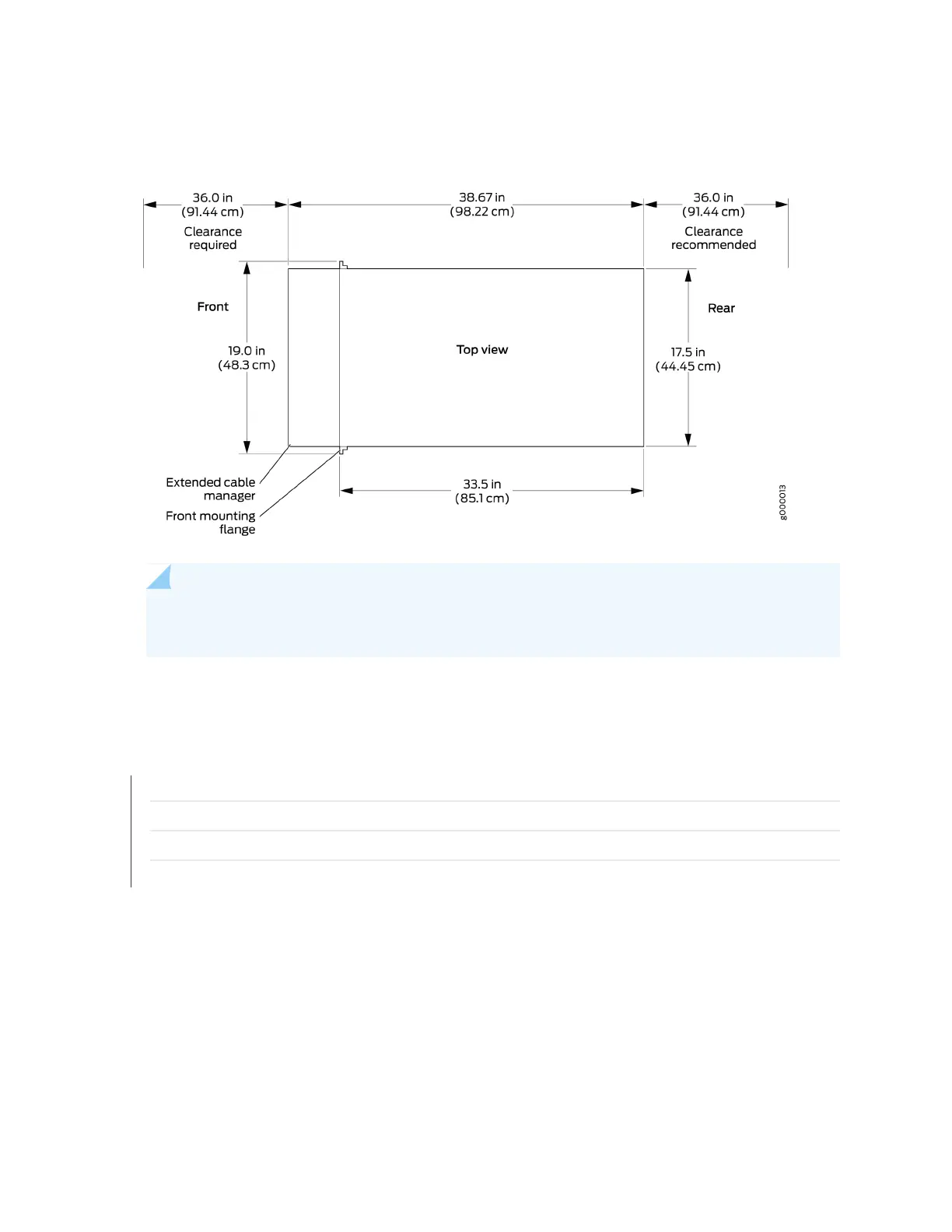

Figure
56:
Chassis
Dimensions
and
Clearance
Requirements
for
the
MX2020
Router
with
the
Extended
Cable
Manager
NOTE:
There
must
be
a
minimum
of
45
U
of
usable
rack
space
when
you
install
the
MX2020
router
into
a
45-U
rack.
RELATED
DOCUMENTATION
MX2020
Rack
Requirements
|
130
MX2020
Rack-Mounting
Hardware
|
42
MX2020
Cabinet
Size
and
Clearance
Requirements
|
133
MX2020
Cabinet
Airflow
Requirements
|
136
135
157
159
