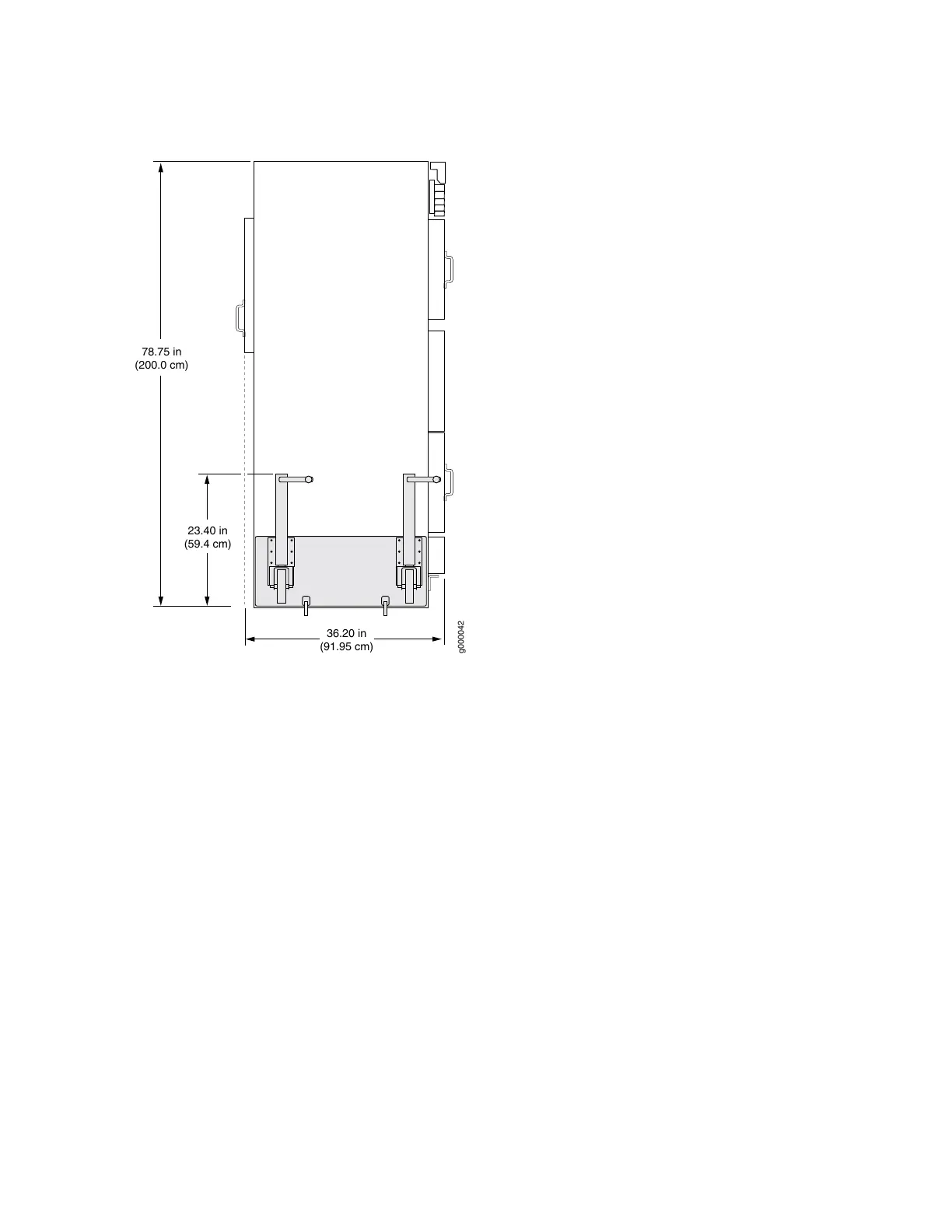

Figure
62:
Measurements
of
the
Router
Transport
Kit
Installed
on
the
MX2020
(Side
View)
g000042
78.75
in
(200.0
cm)
23.40
in
(59.4
cm)
36.20
in
(91.95
cm)
The
front
view
measurements
of
the
MX2020
router
with
the
router
transport
kit
installed
is:
30.78
in.
(78.2
cm),
19
in.
(48.3
cm)
wide
(see
Figure
63
on
page
145
).
144
166
168
