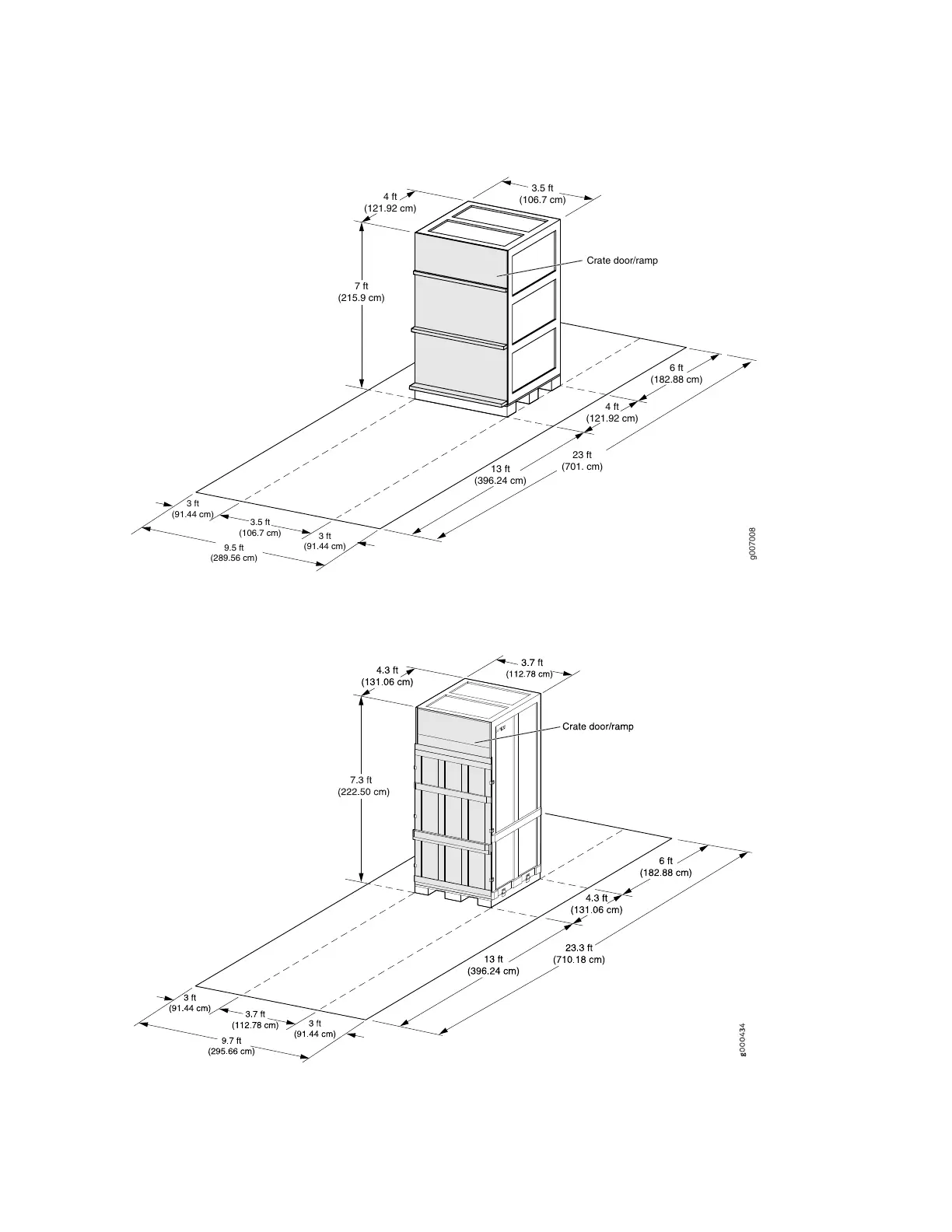

Figure 80: MX2020 Shipping Crate Dimensions (smaller)
g007008
7 ft
(215.9 cm)
3 ft
(91.44 cm)
3 ft
(91.44 cm)
4 ft
(121.92 cm)
3.5 ft
(106.7 cm)
4 ft
(121.92 cm)
13 ft
(396.24 cm)
23 ft
(701. cm)
6 ft
(182.88 cm)
3.5 ft
(106.7 cm)
9.5 ft
(289.56 cm)
Crate door/ramp
Figure 81: MX2020 Shipping Crate Dimensions (larger)
