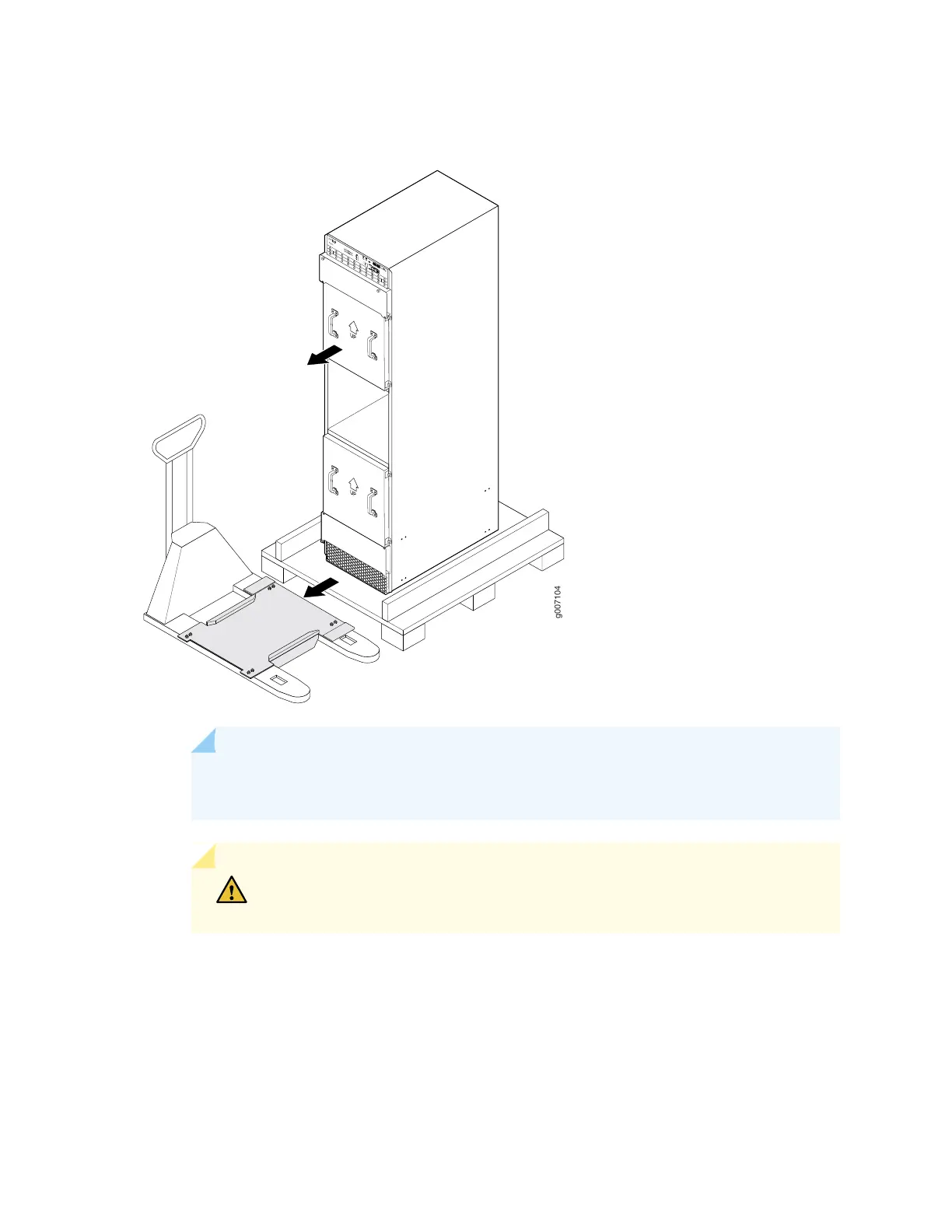

Figure 100: Loading the MX2020 Router onto the Pallet Jack
g007104
RE0
RE1
MASTER
ONLINE
OFFLINE
PSM
1
2
3
4
5
6
7
8
0
10
11
12
13
14
15
16
17
9
MX2200
LC
CB-RE
LC
SFB
10
0
0
11
0
1
12
1
2
13
2
3
14
3
4
15
4
5
16
5
6
17
6
7
18
7
8
19
1
9
LC
CB-RE
LC
SFB
NOTE: Juniper Networks offers a router transport kit to install the router (see “Installing
the MX2020 Router Using a Router Transport Kit” on page 270).
CAUTION: Applying force to any other parts of the chassis other than the
shipping covers can damage the chassis.
5. Attach the shipping brackets to the pallet jack attachment using existing hardware.
6. On each of the shipping brackets, partially insert screws into the holes to secure the brackets to the
chassis. Tighten all screws. These brackets will help prevent the chassis from tilting (see
Figure 101 on page 262).
