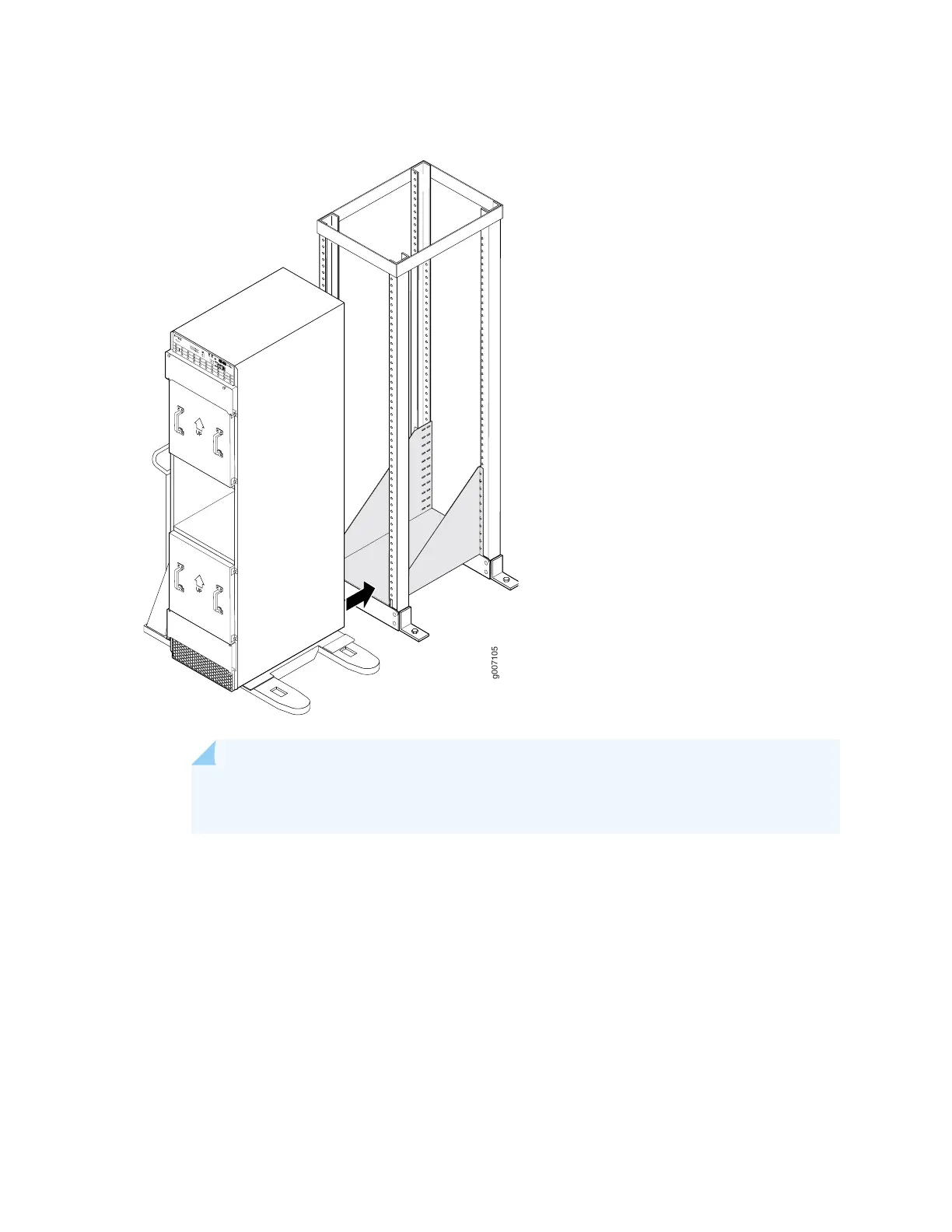

Figure 102: Loading the MX2020 Router into the Rack
g007105
RE0
RE1
MASTER
ONLINE
OFFLINE
PSM
1
2
3
4
5
6
7
8
0
10
11
12
13
14
15
16
17
9
MX2200
LC
CB-RE
LC
SFB
10
0
0
11
0
1
12
1
2
13
2
3
14
3
4
15
4
5
16
5
6
17
6
7
18
7
8
19
1
9
LC
CB-RE
LC
SFB
NOTE: There must be a minimum of 45 U of usable rack space when installing the MX2020
router into a 45-U rack.
12. Move the pallet jack away from the rack.
13. Visually inspect the alignment of the router. If the router is installed properly in the rack, all the mounting
screws on one side of the rack should be aligned with the mounting screws on the opposite side, and
the router should be level.
14. Insert sixteen mounting screws (eight on each side) into the mounting holes to secure the router to the
rack.
264
