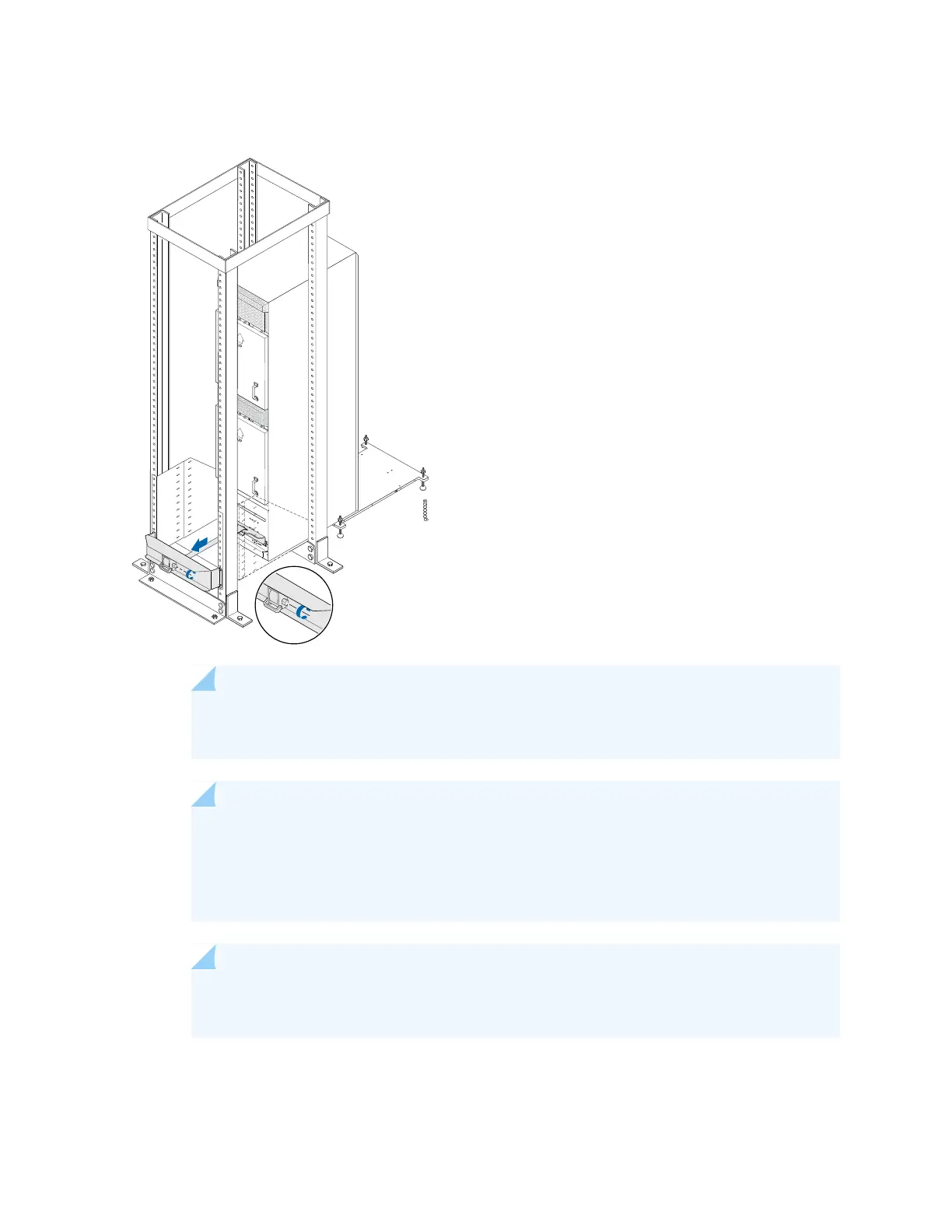

Figure 112: Pulling the MX2020 into the Rack
NOTE: A four-person team is needed to carefully guide the router into the rack while
operating the winch.
NOTE: If the router isn’t pulled all the way into the rack by the winch mechanism, grasp
the handles on the shipping covers and carefully slide the router onto the mounting shelf
until the front-mounting flanges contact the rack rails. You must remove the winch bracket
to perform this procedure.
NOTE: There must be a minimum of 45-U of usable rack space when installing the MX2020
into a 45-U rack.
11. Remove the router transport platform, and set the platform aside.
