6. Lift the CB-RE into place, and carefully align first the bottom, then the top of the CB-RE with the guides
inside the card cage.
7. Slide the CB-RE all the way into the card cage until you feel resistance.
8. Grasp both ejector handles, and gently close them inward simultaneously until the CB-RE is fully seated.

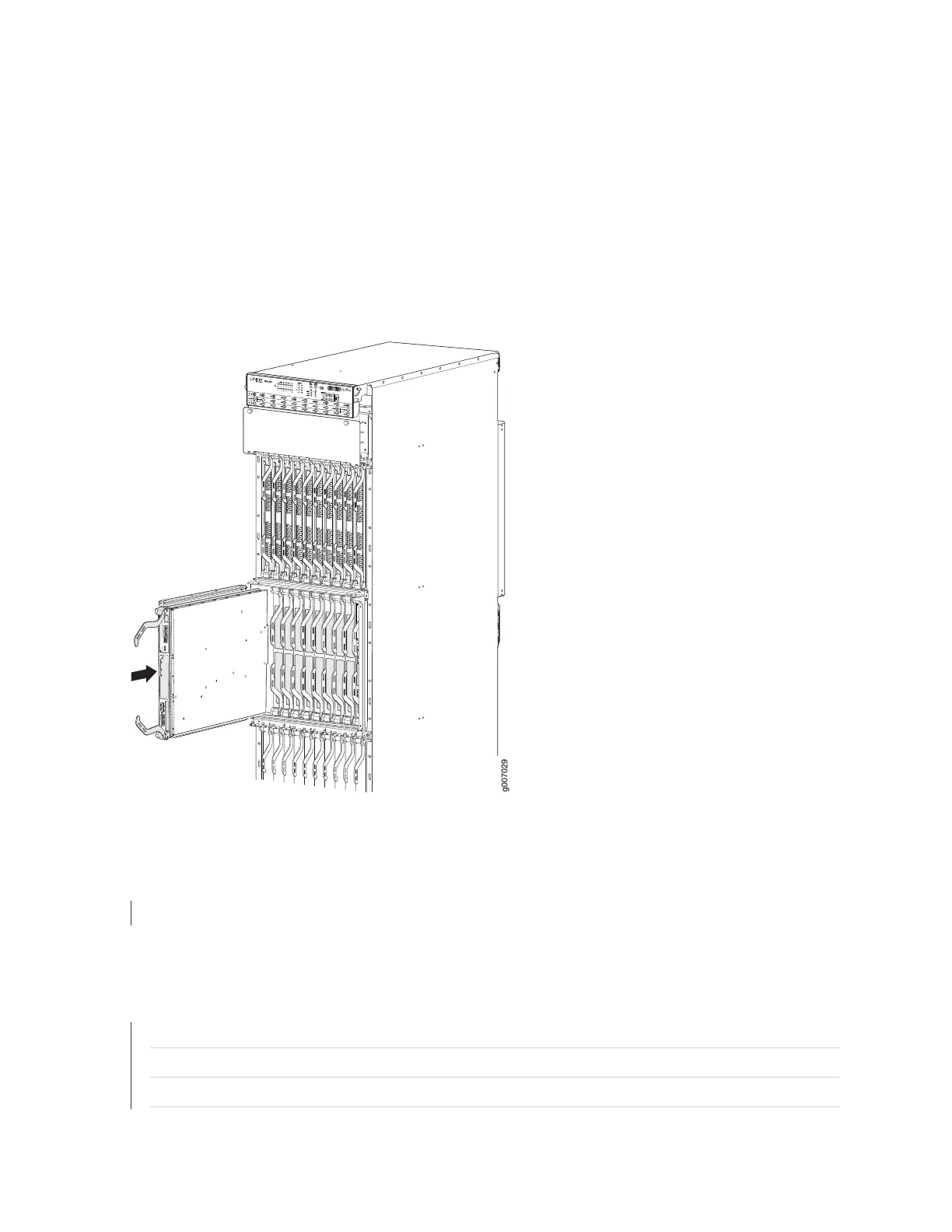

Figure 124: Reinstalling a CB-RE
g007029
19
0
OK/FAIL
OK/F
AIL
OK/FAIL
OK/F
AIL
OK/FAIL
OK/FAIL
OK/FAIL
OK/FAIL
SEE ALSO
Removing the CB-REs Before Installing the MX2020 Router with a Pallet Jack
RELATED DOCUMENTATION
Overview of Preparing the Site for the MX2020 Router | 121
Tools Required to Install the MX2020 Router Using a Pallet Jack | 223
Removing Components from the MX2020 Router Chassis Before Installing it in a Rack | 245
289
