e. Store the septum and screws for later use.
f. Install the MPC as described in “Installing an MX2020 MPC into an Adapter Card” on page 544.

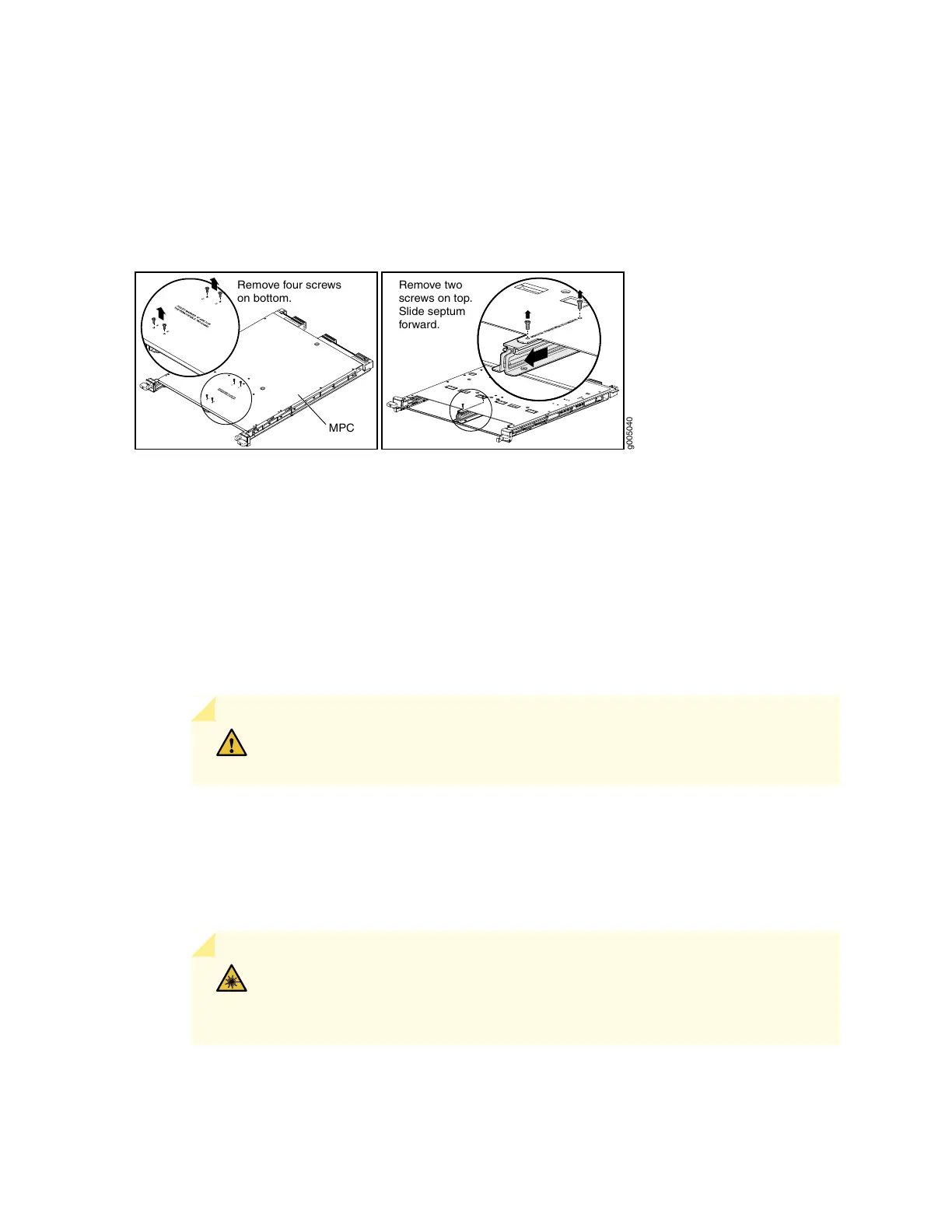

Figure 244: Removing the Septum
g005040
Remove four screws
on bottom.
MPC
Remove two
screws on top.
Slide septum
forward.
3. If the MIC uses fiber-optic cable, verify that a rubber safety cap is over each transceiver on the faceplate.
Install a cap if necessary.
4. Pull the ejector lever above both MIC slots away from the router.
5. Align the rear of the MIC with the guides located at the corners of the MIC slot.
6. Slide the MIC into the MIC slot until it is firmly seated in the chassis.
CAUTION: Slide the MIC straight into the slot to avoid damaging the
components on the MIC.
7. Verify that the ejector levers are engaged by pushing them toward the router.
8. If the MIC uses fiber-optic cable, remove the rubber safety cap from each transceiver and the end of
each cable.
WARNING: Do not look directly into a fiber-optic transceiver or into the ends
of fiber-optic cables. Fiber-optic transceivers and fiber-optic cable connected
to a transceiver emit laser light that can damage your eyes.
