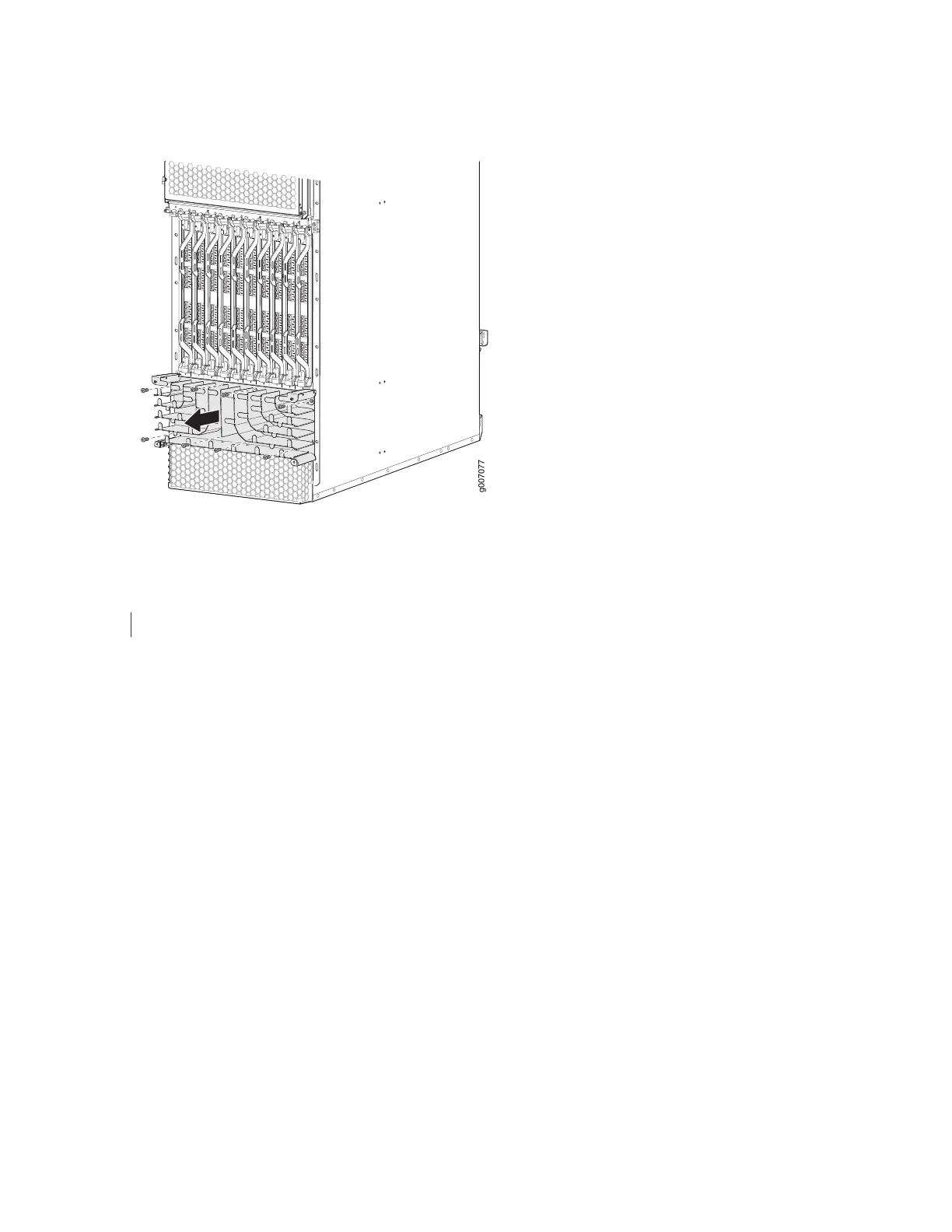

Figure 270: Removing the Standard Lower Cable Manager
SEE ALSO
Installing the MX2020 Lower Cable Manager | 620
Removing the MX2020 DC Cable Manager
To remove the standard DC cable manager (see Figure 267 on page 615):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
an approved site ESD grounding point. See the instructions for your site.
2. Grasp the DC cable manager, lift up and pull straight out from the DC PDM on the rear of the chassis.
3. Place the DC cable manager into an electrostatic bag and set it aside.
619
