The CB-REs and SFBs are equipped with an air divider to deflect the exhaust air from the bottom half of
the system out and direct the air to the top half MPCs.

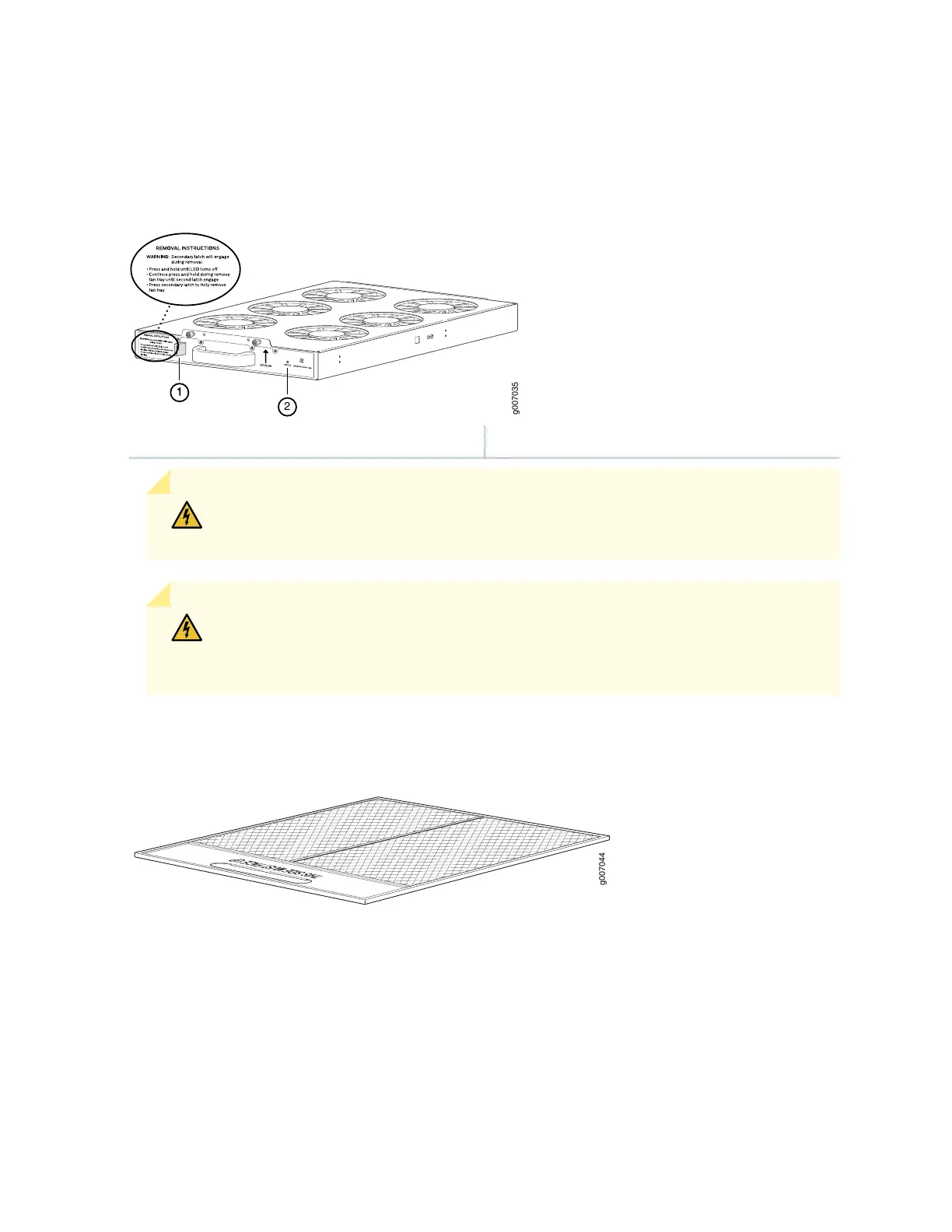

Figure 22: Upper/Lower Fan Tray
2—1— STATUS LEDSafety double latch system
WARNING: Before removing a fan tray, make sure the fan blades have stopped
completely.
WARNING: The fan trays use a double latch safety mechanism. Press and hold the
latch until the STATUS LED turns off. Continue to press and hold the latch while
removing the fan trays.
Figure 23: Lower Fan Tray Air Filter
The air baffle is an optional component that can be purchased from Juniper Networks.
When installed over the upper fan tray access door, the air baffle dissipates exhausted air away from the
router.
RELATED DOCUMENTATION
47
