Keithley 2461 Reference Manual

Section
2: General operation Model 2461 Interactive SourceMeter® Instrument
Reference Manual
2-114 2461-901-01 A/November 2015

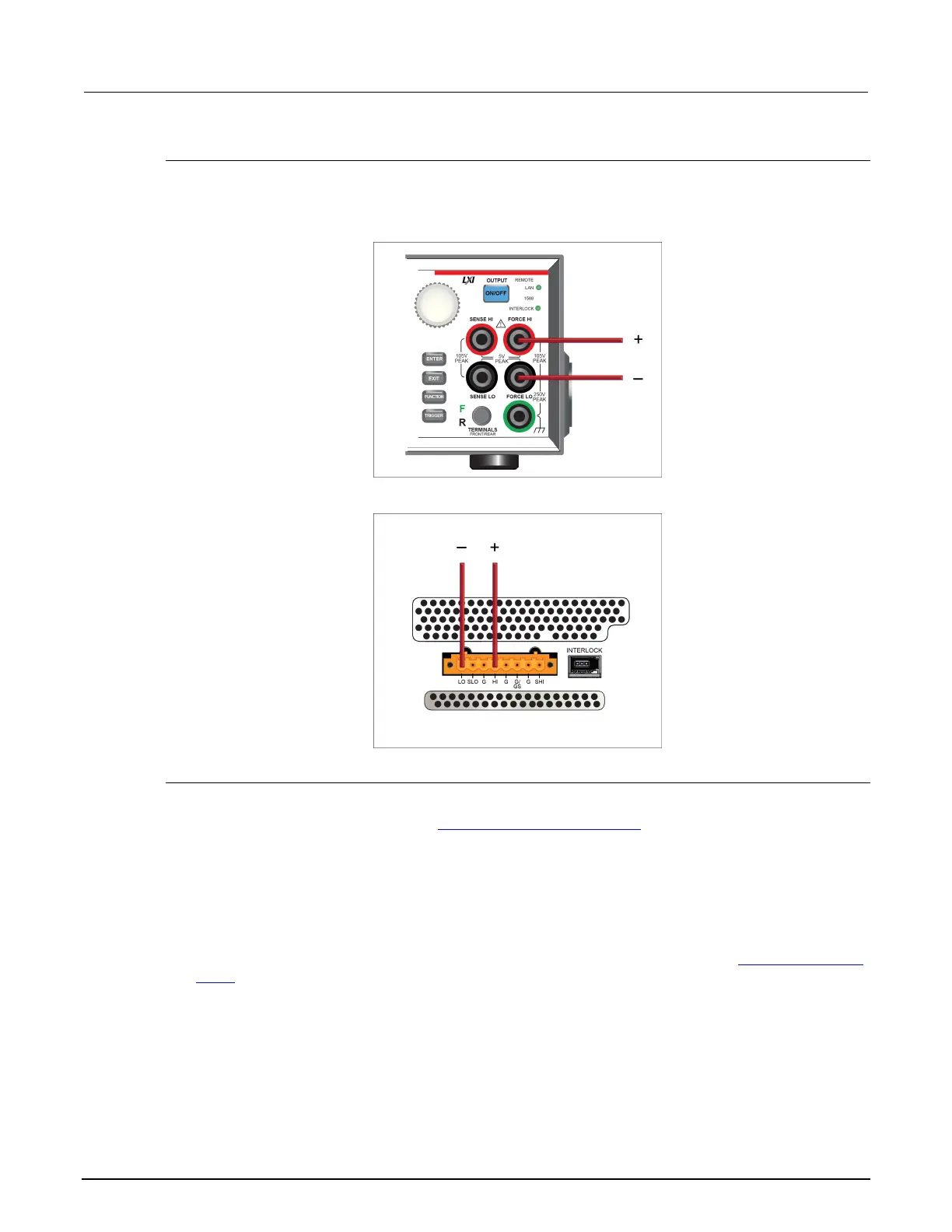

Digitize measure connections
The connections for front-panel and rear-panel digitize measurements are shown in the following
graphics.
Figure 72: Front-panel measure connections: Digitize voltage
Figure 73: Rear-panel measure connections: Digitize voltage
Measure with digitize current or voltage using the front panel
To make a digitize current or voltage measurement using the front panel:
1. Make the connections as shown in Digitize measure connections (on page 2-114).
2. Press the FUNCTION key.
3. Select the Digitize tab.
4. Select the digitize function you want to use.
5. Press the MENU key.
6. Under Measure, select Settings.
7. Select the settings for your application. For descriptions of the options, refer to Measure Settings
menu (on page 2-27).
8. Press the TRIGGER key for 2 seconds and verify that the instrument is set to Continuous
Measurement.
The measurements display on the front panel.

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
