8. Select OK. The MANAGE READING BUFFERS window is displayed, showing the buffer you just
created.

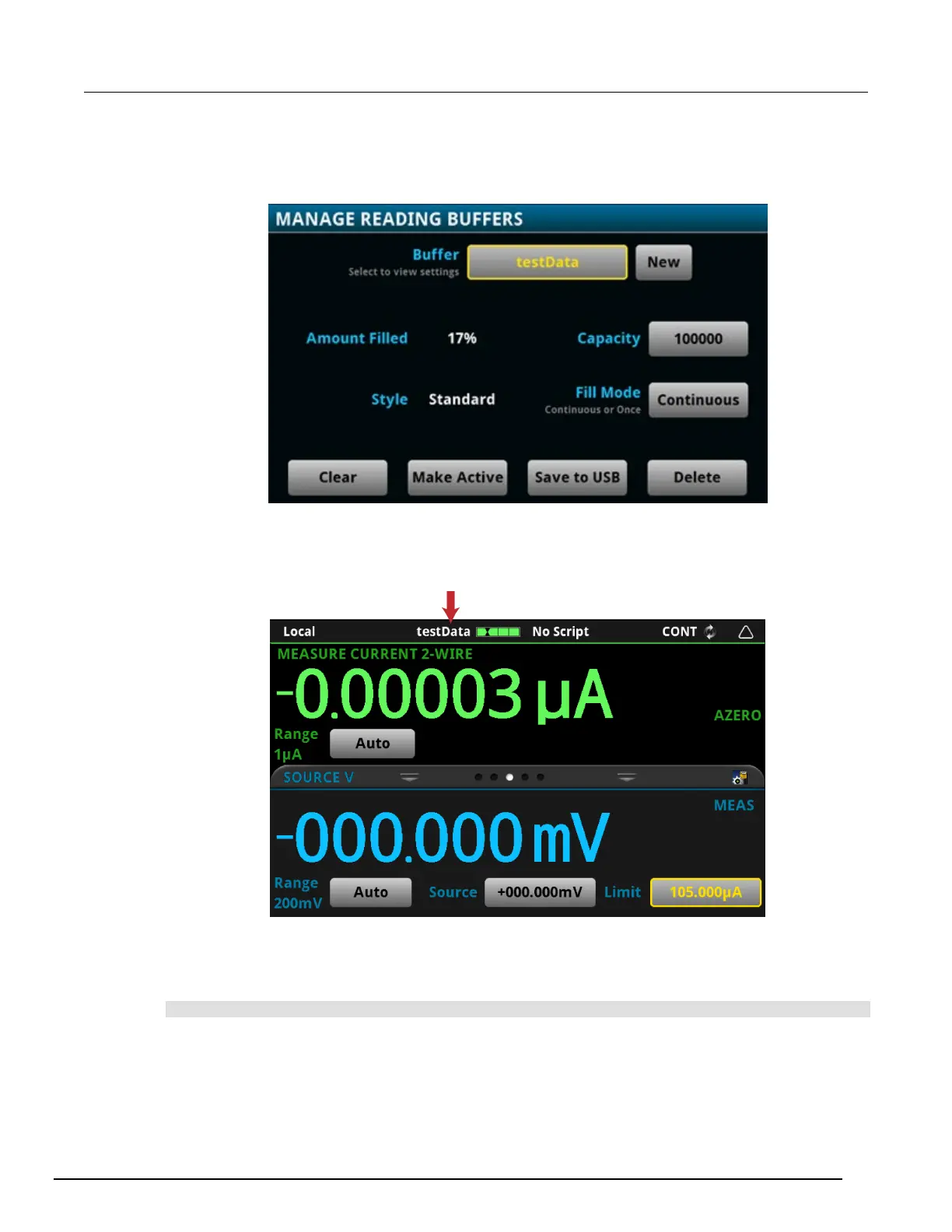

Figure 89: MANAGE READING BUFFERS window
9. Press the HOME key to return to the Home screen.
After you create a new reading buffer, the new reading buffer becomes the active buffer.
Figure 90: Active buffer indicator
Using SCPI commands to create a reading buffer:
To create a full reading buffer named testData with a capacity of 200 readings, send the following
command:
TRACe:MAKE "testData", 200, FULL
