Model 2461
Interactive SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2461-901-01 A/November 2015 3-17

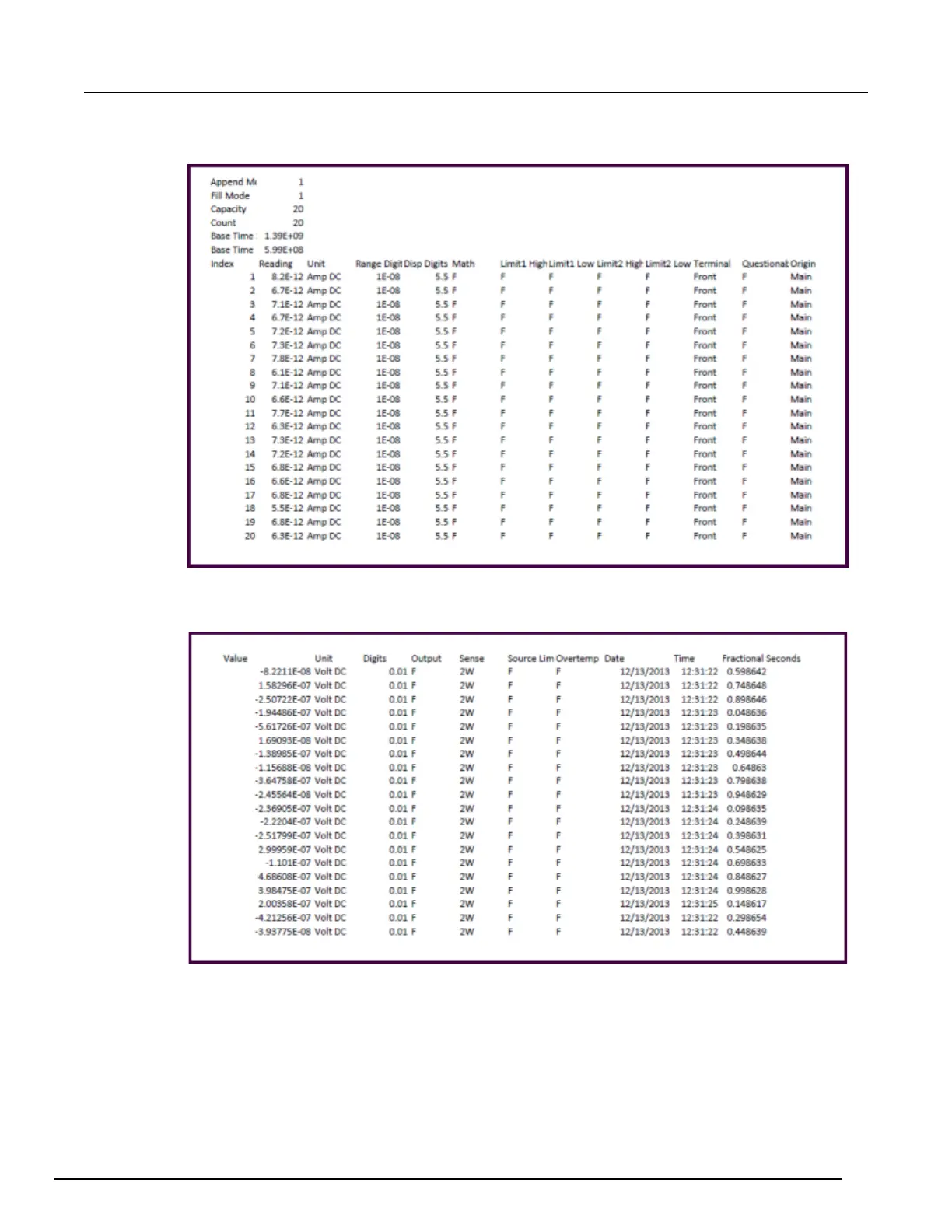

Figure 98: Example of spreadsheet with reading buffer content Sheet 1
Figure 99: Example of spreadsheet with reading buffer content Sheet 2
The following table describes the information that is stored in each column of the spreadsheet.
An F in a column indicates the corresponding heading item is false for that reading. For example, if an
F is listed in the Math column, it indicates that the item was not used or did not occur on that reading.
A T in a column indicates that the corresponding heading item is true for that reading. For example, if
a T is listed in the Math column, it indicates that the item was applied to that reading.
