Keithley 2461 Reference Manual

Section
3: Functions and features Model 2461 Interactive SourceMeter® Instrument
Reference Manual
3-56 2461-901-01 A/November 2015
Setting up a sweep from the front panel
To set up a sweep from the front panel, you select options from the Sweep Settings screen.
Set up the sweep from the front panel
1. Select FUNCTION and select the source and measure functions.
2. On the Home screen, set the Source value.
3. Press the Menu key.
4. Under Source, select Sweep. The Sweep Settings screen is displayed.

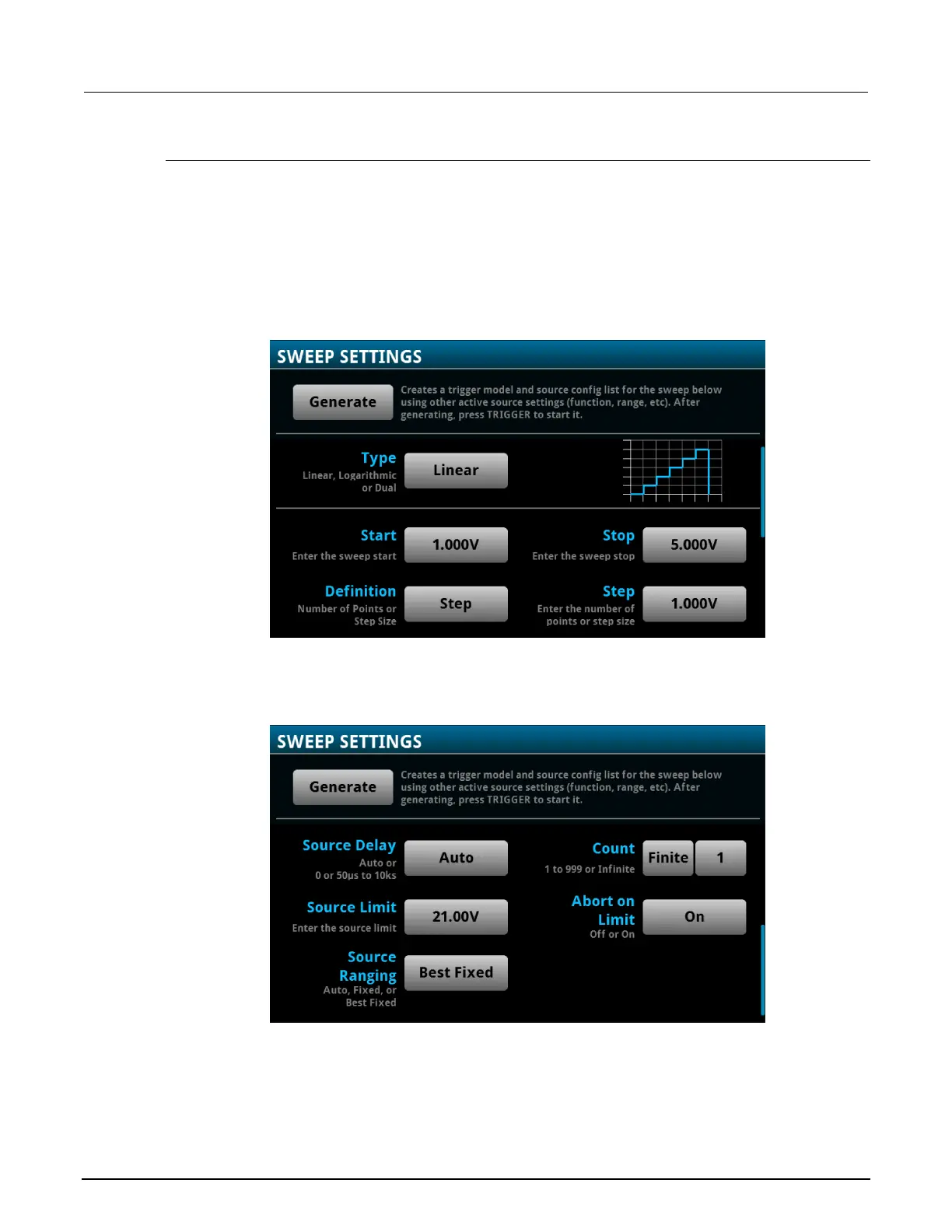

Figure 113: Sweep Settings screen - first page
5. Make selections appropriate to your sweep. See the table below for detail on the options.
6. Swipe down to see additional options.
Figure 114: Sweep Settings screen - second page
7. Make selections appropriate to your sweep. See the table below for detail on the options.
8. Select Generate.
9. To run the sweep, press the TRIGGER key.

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
