Keithley 2461 Reference Manual

Section
3: Functions and features Model 2461 Interactive SourceMeter® Instrument
Reference Manual
3-122 2461-901-01 A/November 2015

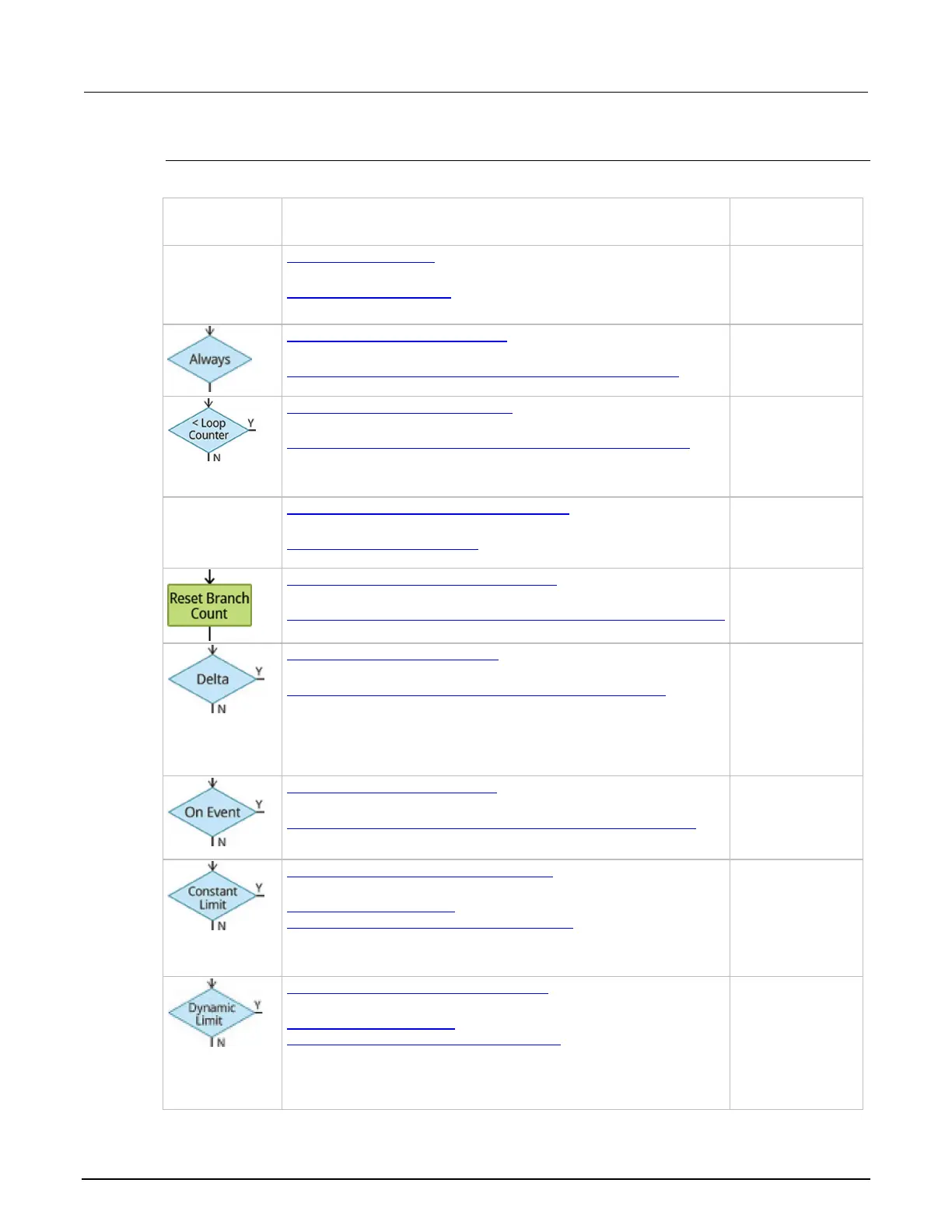

Trigger block summary
Front-panel
icon
SCPI command
TSP command
Block description
Not applicable
:TRIGger:BLOCk:LIST? (on page 6-203)
trigger.model.getblocklist() (on page 8-258)
This returns the
settings for all
trigger model
blocks
:TRIGger:BLOCk:BRANch:ALWays (on page 6-186)
trigger.model.setblock() — trigger.BLOCK_BRANCH_ALWAYS (on
page 8-273)
This defines a
trigger model block
that always goes to
a specific block
:TRIGger:BLOCk:BRANch:COUNter (on page 6-186)
trigger.model.setblock() — trigger.BLOCK_BRANCH_COUNTER (on
page 8-274)
This defines a
trigger model block
that branches to a
specified block a
specified number of
times
Not applicable :TRIGger:BLOCk:BRANch:COUNter:COUNt? (on page 6-187)
trigger.model.getbranchcount() (on page 8-259)
This returns the
count value of the
trigger model
counter block
:TRIGger:BLOCk:BRANch:COUNter:RESet (on page 6-188)
trigger.model.setblock() — trigger.BLOCK_RESET_BRANCH_COUNT
(on page 8-295)
This creates a
block in the trigger
model that resets a
branch counter to 0
:TRIGger:BLOCk:BRANch:DELTa (on page 6-189)
trigger.model.setblock() — trigger.BLOCK_BRANCH_DELTA
(on page
8-275)
This defines a
trigger model block
that goes to a
specified block if
the difference of
two measurements
meets preset
criteria
:TRIGger:BLOCk:BRANch:EVENt (on page 6-190)
trigger.model.setblock() — trigger.BLOCK_BRANCH_ON_EVENT (on
page 8-279)
This branches to a
specified block
when a specified
trigger event occurs
:TRIGger:BLOCk:BRANch:LIMit:CONStant (on page 6-191)
trigger.model.setblock() —
trigger.BLOCK_BRANCH_LIMIT_CONSTANT (on page 8-277)
This defines a
trigger model block
that goes to a
specified block if a
measurement
meets preset
criteria
:TRIGger:BLOCk:BRANch:LIMit:DYNamic (on page 6-192)
trigger.model.setblock() —
trigger.BLOCK_BRANCH_LIMIT_DYNAMIC (on page 8-278)
This defines a
trigger model block
that goes to a
specified block in
the trigger model if
a measurement
meets user-defined
criteria

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
