Interactive SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2461-901-01 A/November 2015 3-123
Front-panel
icon
SCPI command
TSP command

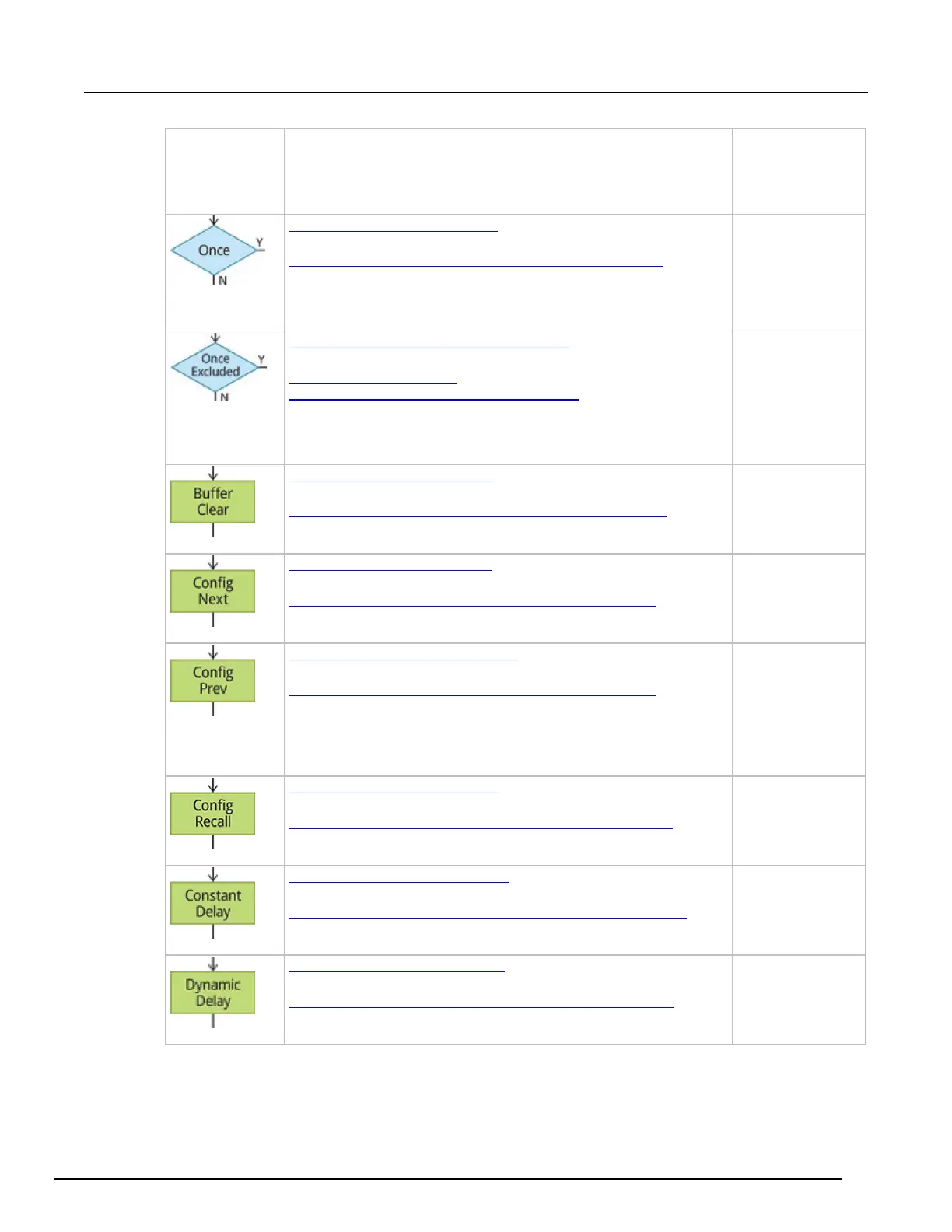

Block description
:TRIGger:BLOCk:BRANch:ONCE (on page 6-193)
trigger.model.setblock() — trigger.BLOCK_BRANCH_ONCE (on page
8-281)
This causes the
trigger model to
branch to a
specified building
block the first time
it is encountered in
the trigger model
:TRIGger:BLOCk:BRANch:ONCE:EXCLuded (on page 6-194)
trigger.model.setblock() —
trigger.BLOCK_BRANCH_ONCE_EXCLUDED (on page 8-281)
This causes the
trigger model to go
to a specified
building block every
time the trigger
model encounters
it, except for the
first time
:TRIGger:BLOCk:BUFFer:CLEar (on page 6-195)
trigger.model.setblock() — trigger.BLOCK_BUFFER_CLEAR (on page
8-282)
This defines a
trigger model block
that clears the
reading buffer
:TRIGger:BLOCk:CONFig:NEXT (on page 6-196)
trigger.model.setblock() — trigger.BLOCK_CONFIG_NEXT (on page
8-283)
This recalls the
settings at the next
index of a source or
measure
configuration list
:TRIGger:BLOCk:CONFig:PREVious (on page 6-197)
trigger.model.setblock() — trigger.BLOCK_CONFIG_PREV (on page
8-284)
This defines a
trigger model block
that recalls the
settings stored at
the previous index
in a source or
measure
configuration list
:TRIGger:BLOCk:CONFig:RECall (on page 6-198)
trigger.model.setblock() — trigger.BLOCK_CONFIG_RECALL (on
page 8-286)
This recalls the
system settings
that are stored in a
source or measure
configuration list
:TRIGger:BLOCk:DELay:CONStant (on page 6-199)
trigger.model.setblock() — trigger.BLOCK_DELAY_CONSTANT (on
page 8-287)
This adds a
constant delay to
the trigger model
:TRIGger:BLOCk:DELay:DYNamic (on page 6-200)
trigger.model.setblock() — trigger.BLOCK_DELAY_DYNAMIC (on
page 8-288)
This adds a delay
to the execution of
the trigger model

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
