Keithley 2461 Reference Manual

Section
2: General operation Model 2461 Interactive SourceMeter® Instrument
Reference Manual
2-52 2461-901-01 A/November 2015

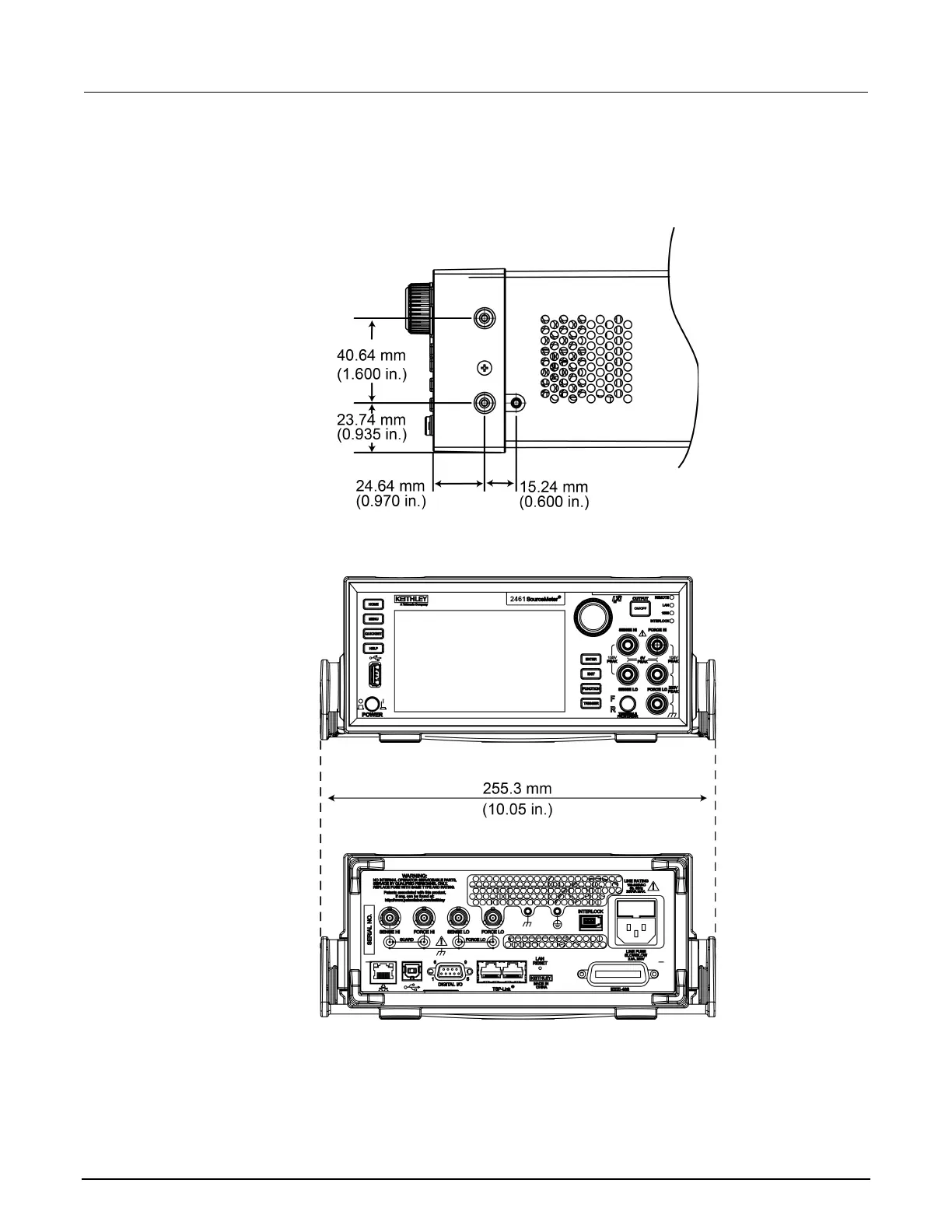

The following figure shows the mounting screw locations and dimensions. Mounting screws must be
#6-32 with a maximum screw length of 11.12 mm (0.438 in.) or 7/16 in. The dimensions shown are
typical for both sides of the instrument.
Figure 34: Model 2461 mounting screw locations and dimensions
The following figures show the dimensions when the handle and bumpers are installed.
Figure 35: Model 2461 dimensions front and rear with handle and bumpers

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
