Keithley 2461 Reference Manual

Model 2461
Interactive SourceMeter® Instrument Reference Manual Section 2: General
operation
2461-901-01 A/November 2015 2-53

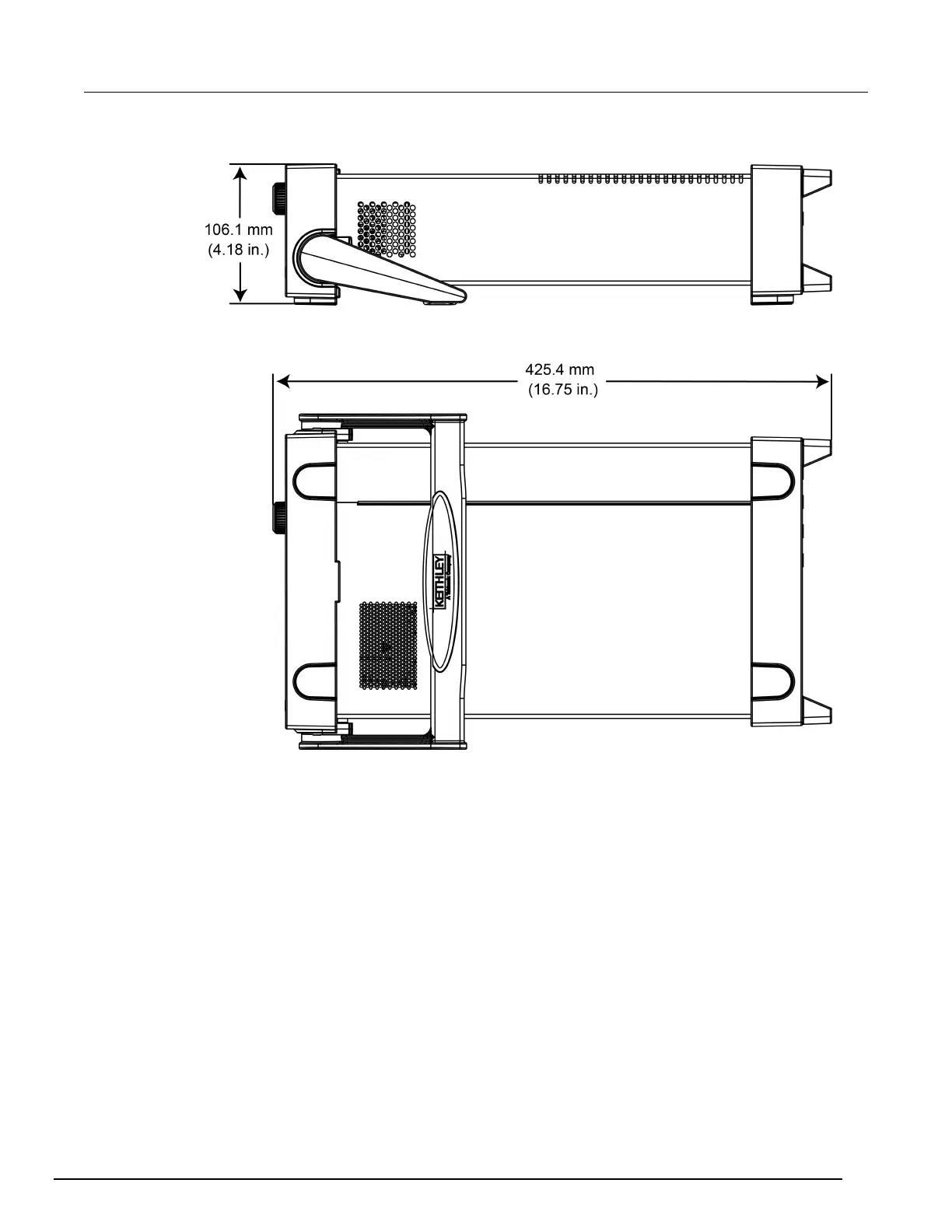

Figure 36: Model 2461 dimensions side and top with handle and bumpers

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
