Keithley 2461

Section
2: General operation Model 2461 Interactive SourceMeter® Instrument
Reference Manual
2-54 2461-901-01 A/November 2015
The following figures show the dimensions when the handle and bumpers have been removed.

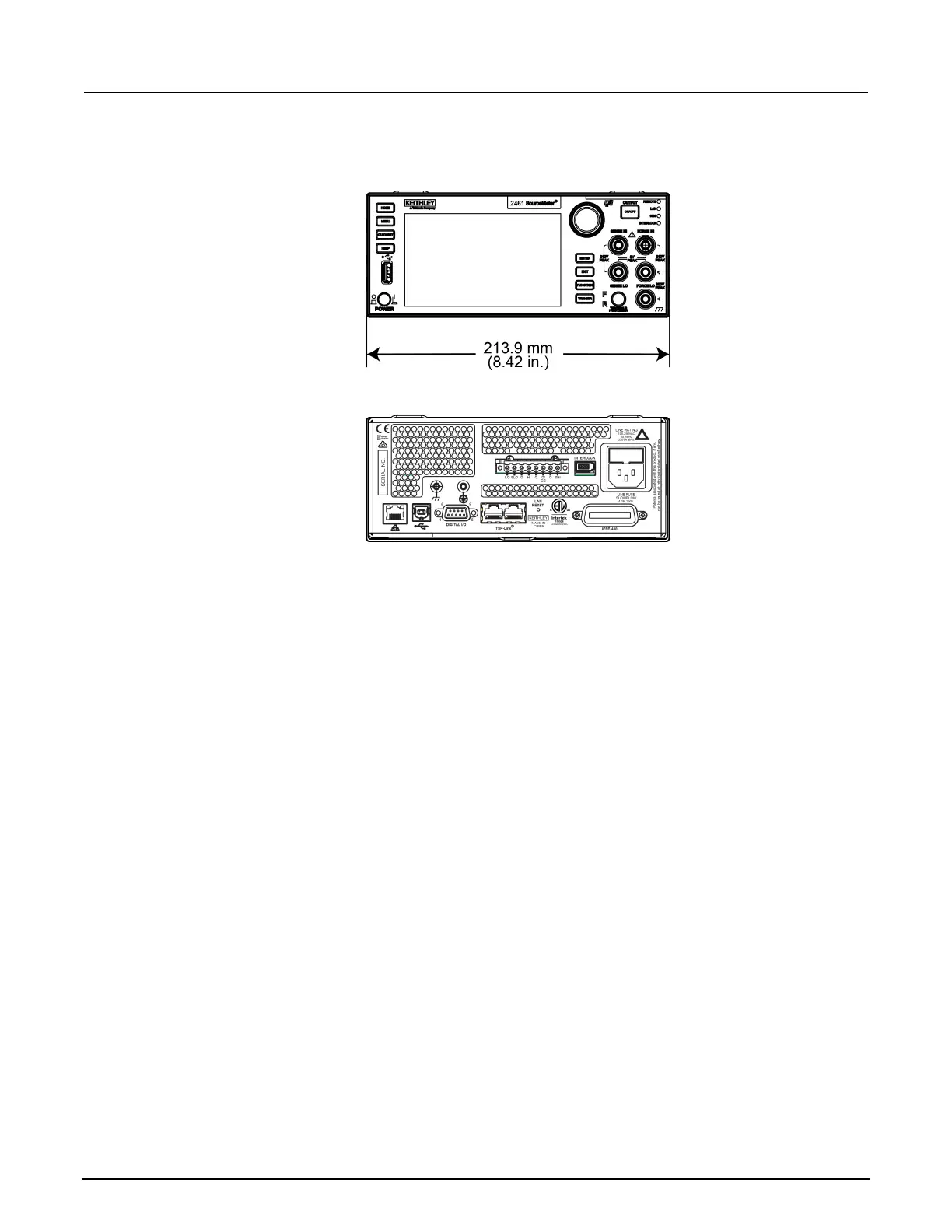

Figure 37: Model 2461 front and rear panel dimensions with handle and bumpers removed
