9.3.2 FlowSampler
®
DN25
• Tube fitting (Sample Inlet and Outlet): DA = 32 mm
• Tube fitting (Analyser Outlet): DA = 32 mm
• Required Flow: 1.0 - 3.0 m
3
/h
• Sample backpressure on Outlet: depressurized (max. < 0.2 bar)

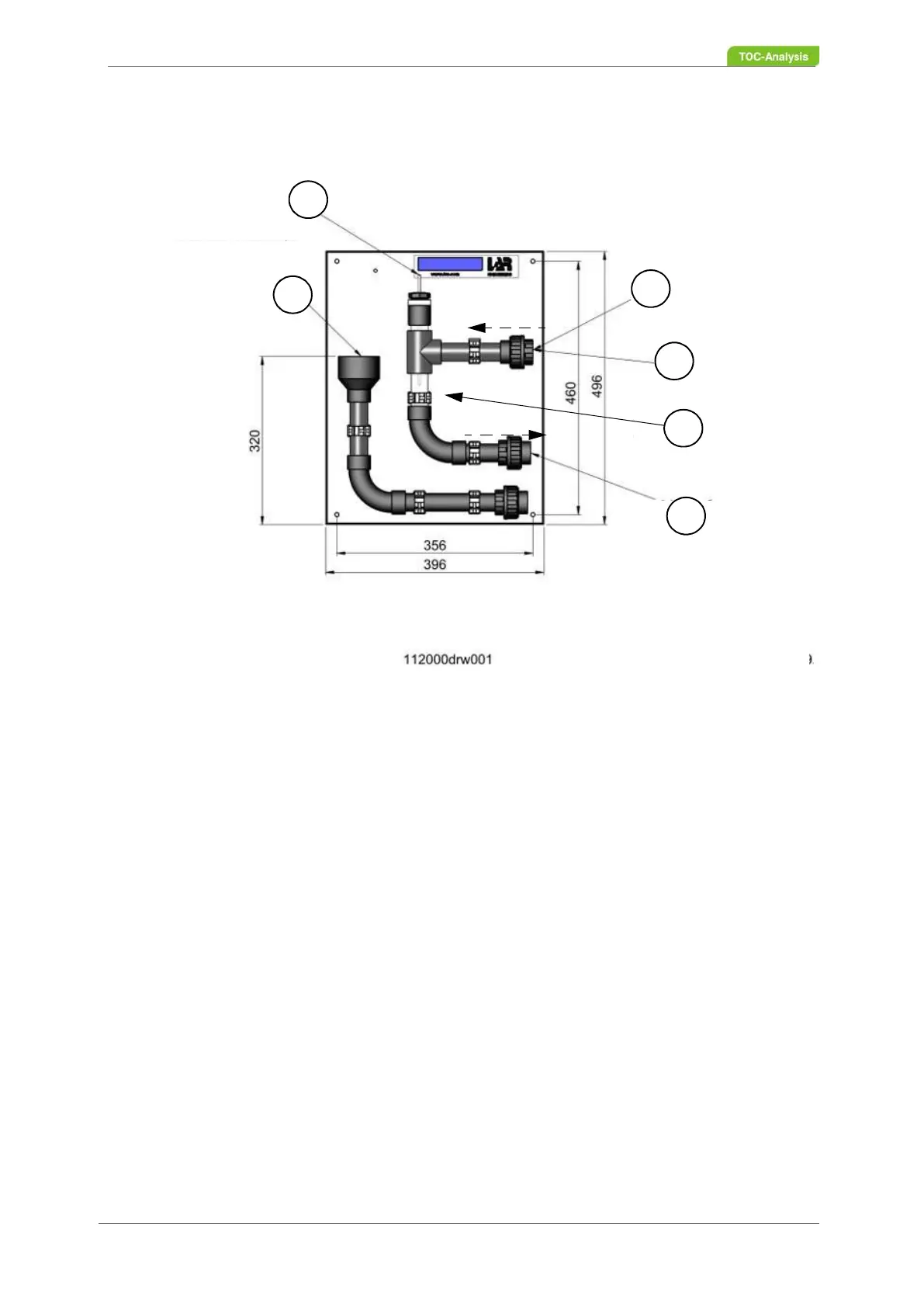

Fig. 141: FlowSampler
®
DN25
3
4
5
1
2
6
1 Sampling Pipe (Needle)
2 Analyser Outlet (depressurized)
3 Tube fitting (DN25)
4 Sample Inlet
5 Window
6 Sample Outlet (DN25)
