When the Scan page is active, the data viewer can be used to graphically configure the active area. The
Active Area setting can also be configured manually by entering values into its fields and is found in the
Sensor panel (see Sensor on page 124).

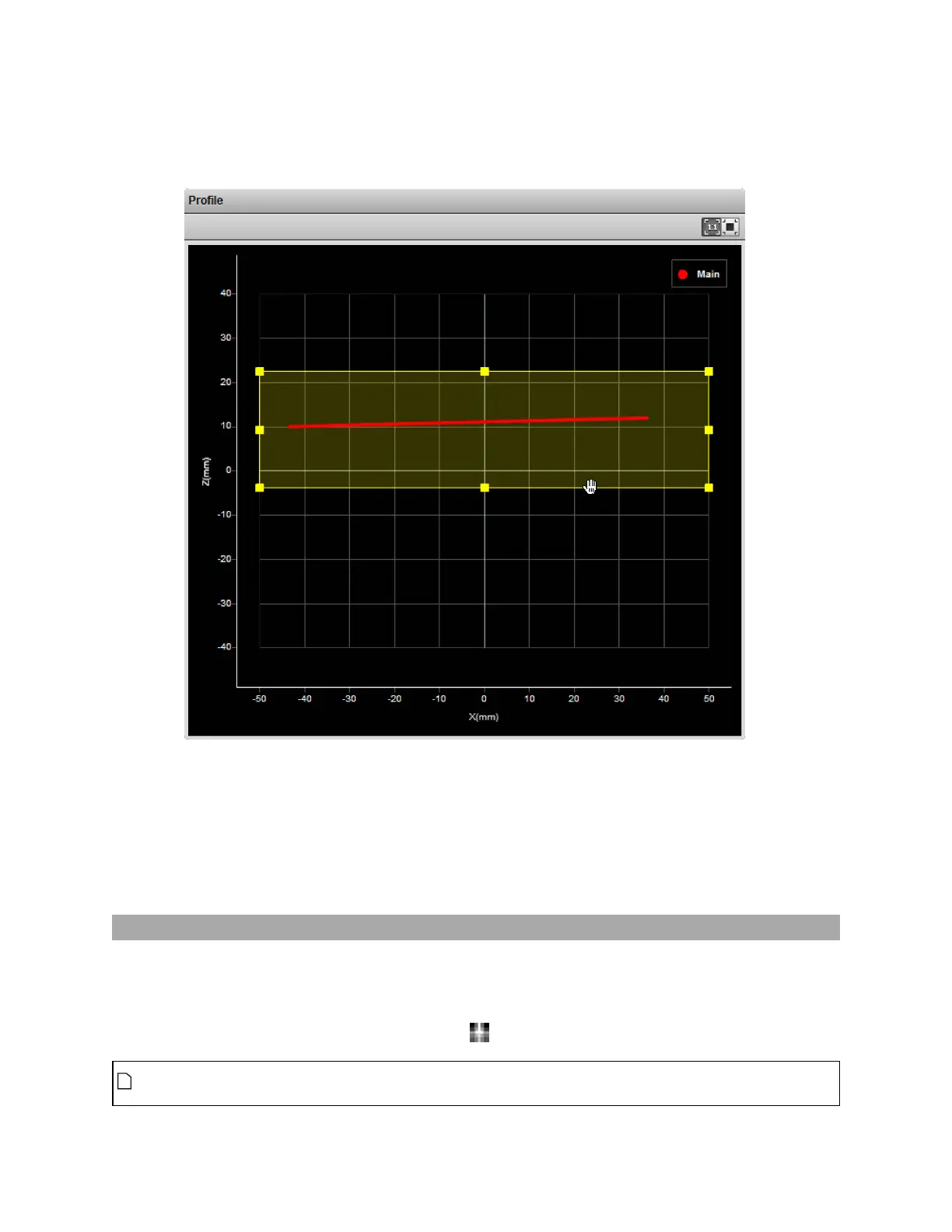

To set up a region of interest:
1. Move the mouse cursor to the rectangle.
The rectangle is automatically displayed when a setup or measurement requires an area to be
specified.
2. Drag the rectangle to move it, and use the handles on the rectangle's border to resize it.
Intensity Output
Gocator sensors can produce intensity images that measure the amount of light reflected by an object.
An 8-bit intensity value is output for each range value along the laser line . Gocator applies the same
coordinate system and resampling logic as the ranges to the intensity values.
To display intensity data, click the Intensity button ( ).
To be able to display intensity data, you must enabled Acquire Intensity in the Scan Mode
panel.
