Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 372
Measurements, Features, and Settings

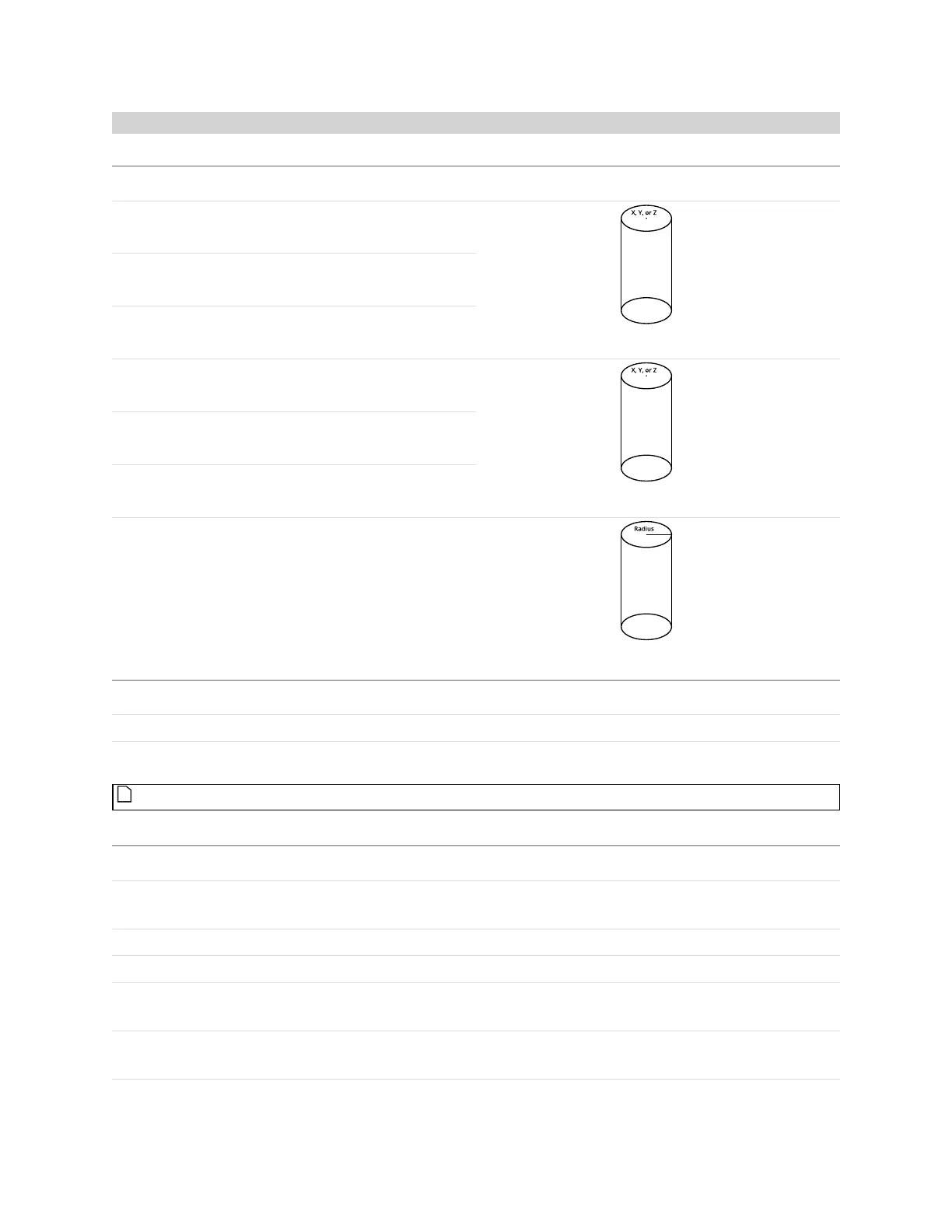

Measurement Illustration
Tip X
Determines the X position of the stud tip.
Tip Y
Determines the Y position of the stud tip.
Tip Z
Determines the Zposition of the stud tip.
Base X
Determines the X position of the stud base.
Base Y
Determines the Y position of the stud base.
Base Z
Determines the Z position of the stud base.
Radius
Determines the radius of the stud.
Measurements
Type Description
Tip Point
The center point of the tip of the stud.
Base Point
The center point of the base of the stud.
Features
For more information on geometric features, see Geometric Features on page 206.
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements. For
more information, see Source on page 201.
Stud Radius Expected radius of the stud.
Stud Height Expected height/length of the stud.
Base Height The height above the base surface that will be ignored when the (truncated) cone is fit to the
stud data.
Tip Height The height from the top of the surface that will be ignored when the (truncated) cone is fit to
the stud data.
Parameters
