Gocator Line Profile Sensors: User Manual
Getting Started • 26

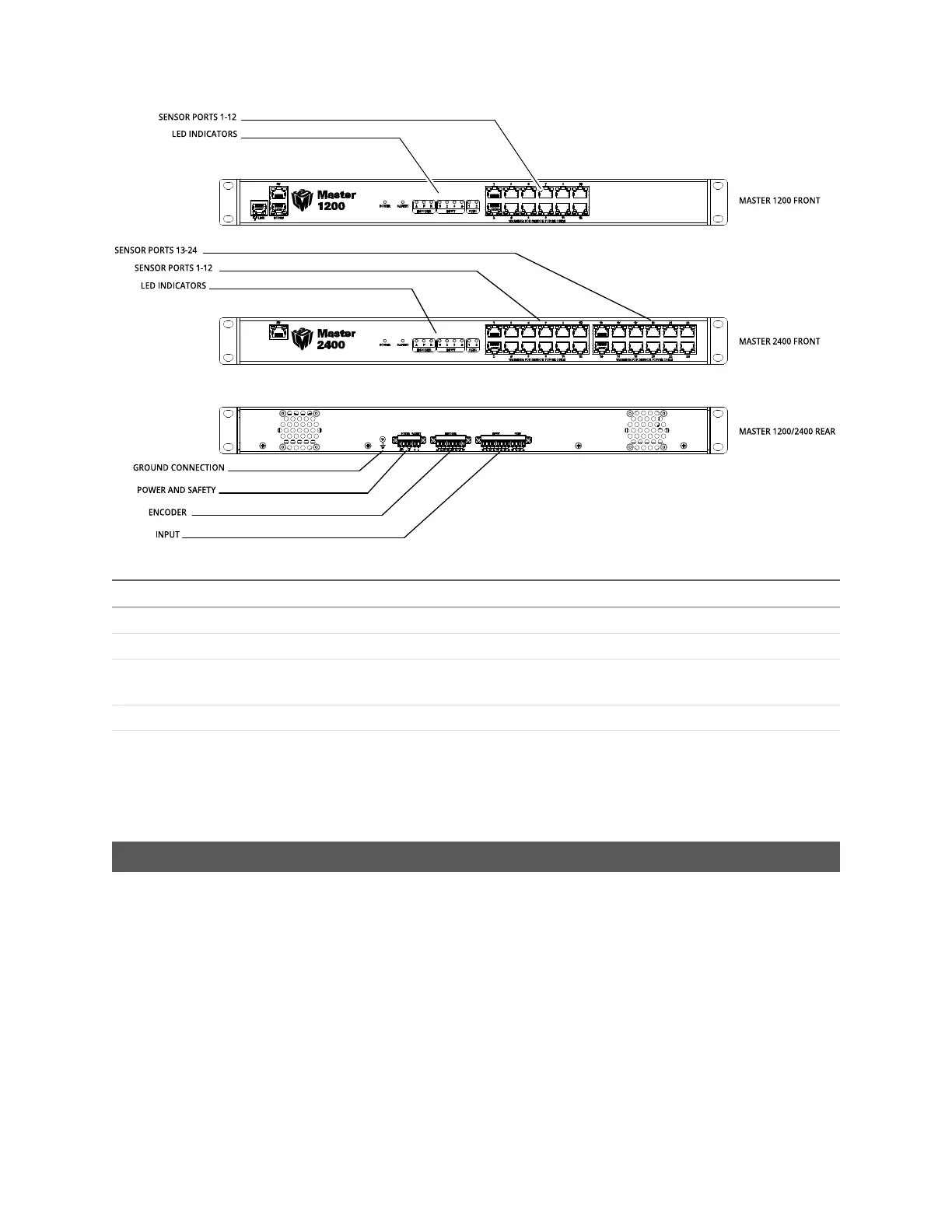

Master 1200 and 2400
Item Description
Sensor Ports Master connection for Gocator sensors (no specific order required).
Ground Connection Earth ground connection point.
Power and Safety Power and safety connections. Safety input must be high in order to scan with laser-
based Gocators.
Encoder Accepts encoder signal.
Input Accepts digital input.
For pinout details for Master 400 or 800, see Master 400/800 on page 775.
For pinout details for Master 1200 or 2400, see Master 1200/2400 on page 788.
Master 810 / 2410
The Master 810 and 2410 network controllers let you connect multiple sensors to create a multi-sensor
system:
l Master 810 accepts up to eight sensors
l Master 2410 accepts up to twenty-four sensors
Both models let you divide the quadrature frequency of a connected encoder to make the frequency
compatible with the Master, and also set the debounce period to accommodate faster encoders. For
more information, see Configuring Master 810 on page 40. (Earlier revisions of these models lack the
DIPswitches.)
