Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 316
Measurement Panel
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
Data and Settings
Type Description
Extended Surface Data containing an extended surface, available for use as input in the Stream drop-down in
other tools.
Data
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements. For
more information, see Source on page 201.

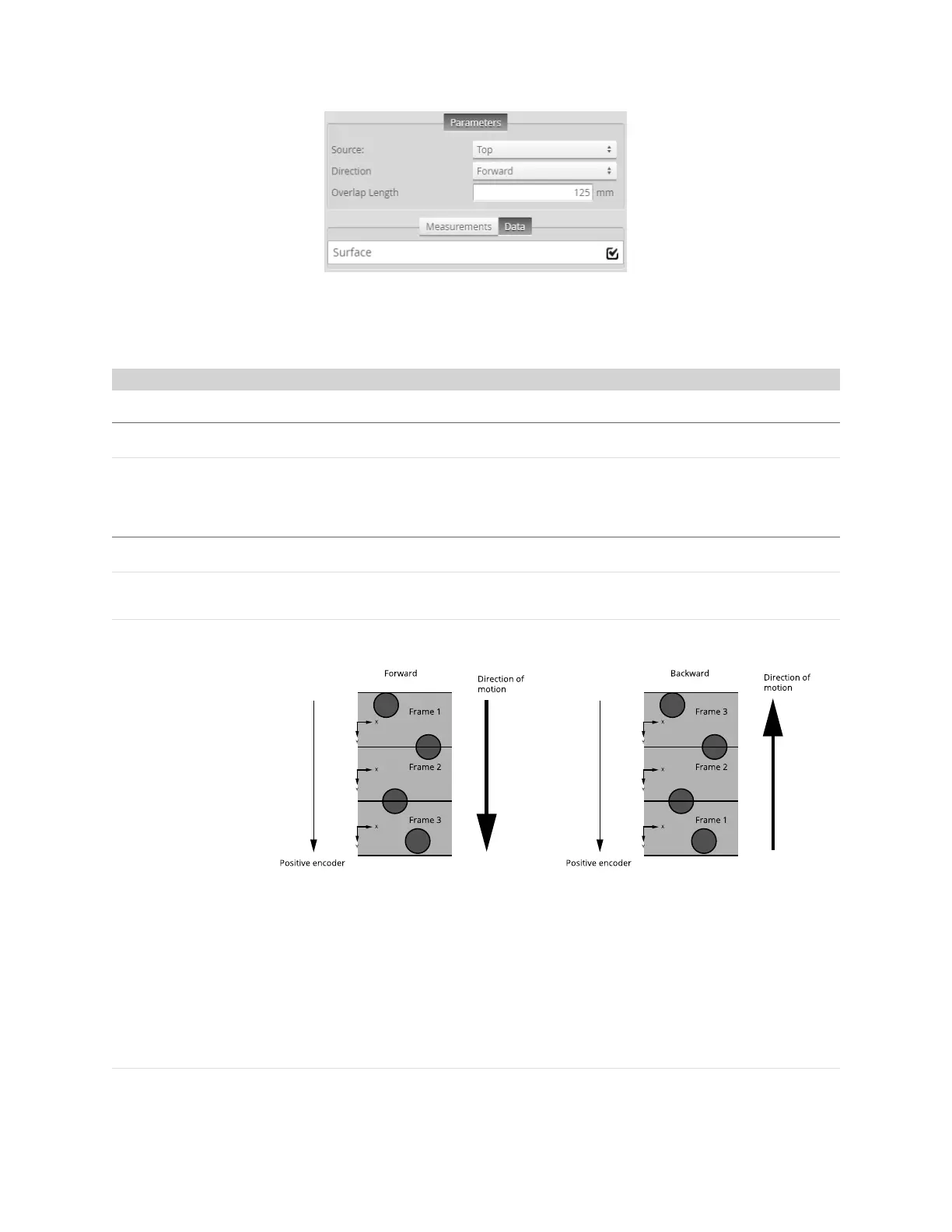

Direction Determines whether the previous frame's data is appended above or below the current
frame's data.
One of the following. Note that these settings depend on whether the trigger source has
been set to Encoder (see Trigger Settings on page 122).
l Auto: Choose this when Encoder is selected as the trigger source, in which case the tool
will know the direction of travel relative to encoder increase / decrease.
l Forward: Choose this when the trigger source is not set to Encoder and the direction of
motion is the same as the increase of the encoder.
l Backward: Choose this option when the trigger source is not set to Encoder and the
direction of motion is the opposite of the increase of the encoder.
Parameters
