Ball Bar
This tool is not supported on A and B revision Gocator 2100 and 2300 sensors. It will however
appear in emulator scenarios created using these sensors.

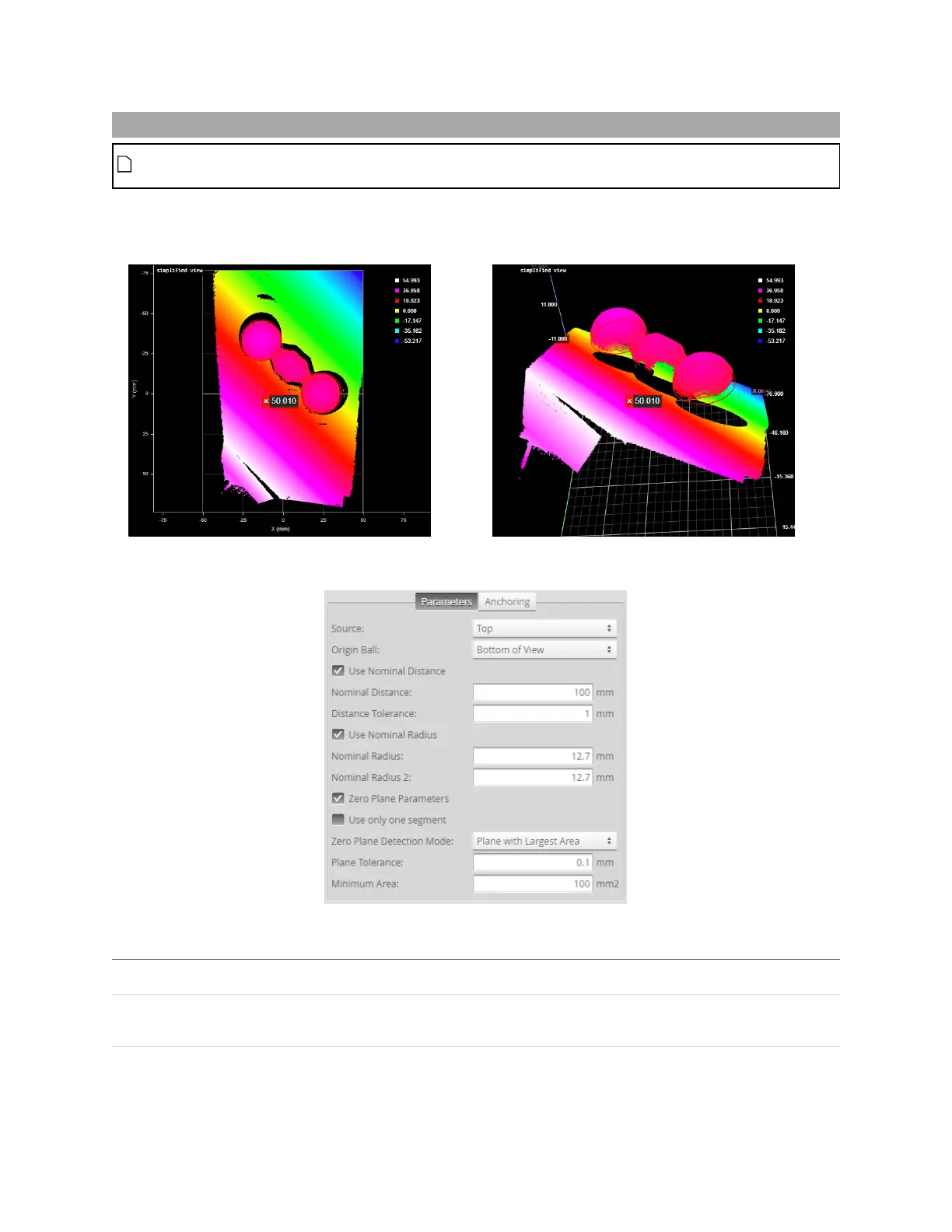

The Surface Ball Bar tool returns measurements useful for calibrating systems using a ball bar,
particularly systems that include a robot.
2DView 3DView
Measurement Panel
Measurement
Distance 3D
The direct distance between the centers of the spheres fitted to the balls.
