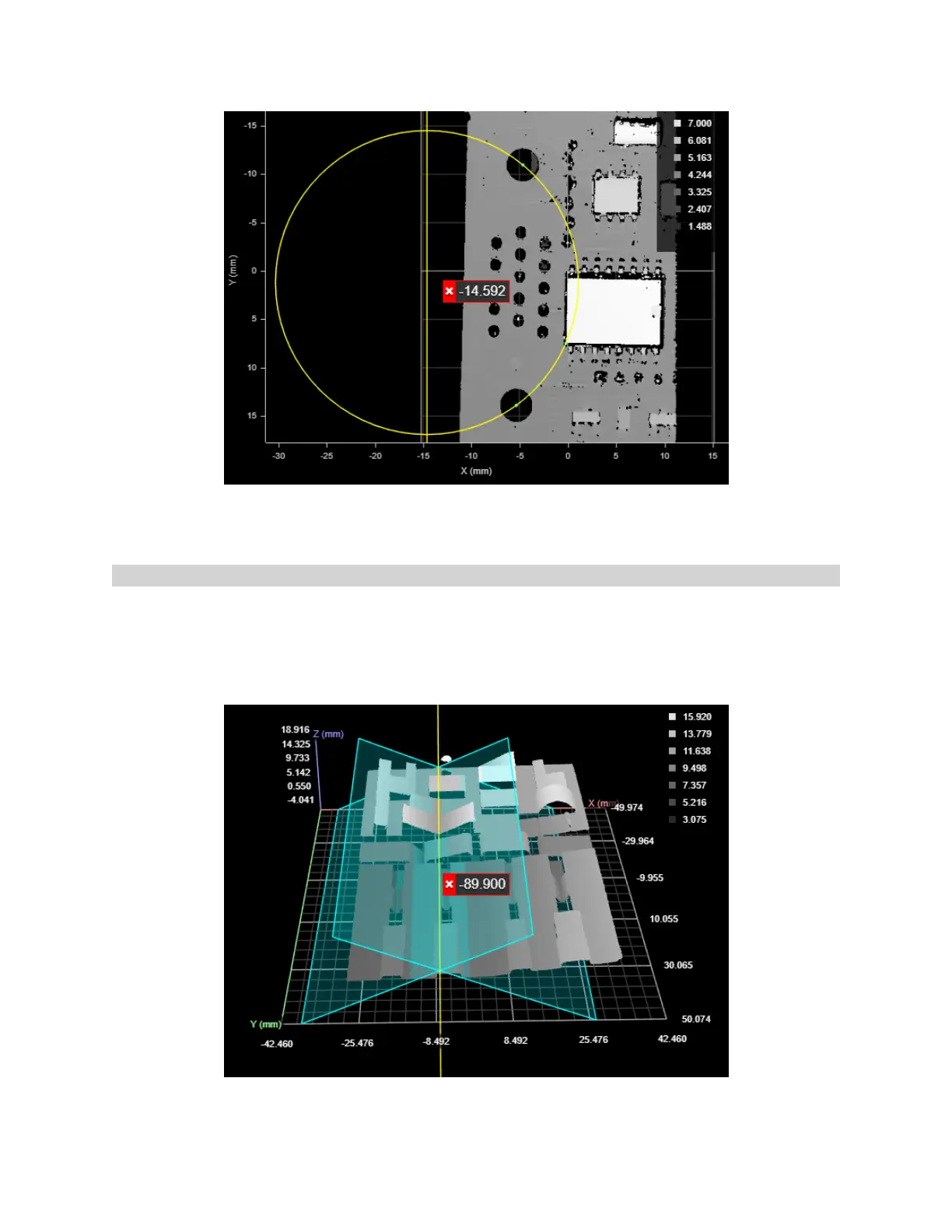

Circle generated from the center points of the two holes and the corner of the chip (cyan points).
(The corner is the intersect point resulting from the Feature Intersect tool,
taking the left vertical and lower horizontal line edges of the chip as input.)
Line from Two Planes
The Line from two planes output type takes two plane geometric features as input and creates a line
at their intersection.
The X, Y, and Zmeasurements return the midpoint. The X, Y, and Z Angle measurements return the angle
of the line.
A line generated at the intersection of two planes. The Z angle is indicated.
