Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 265
Round Corner

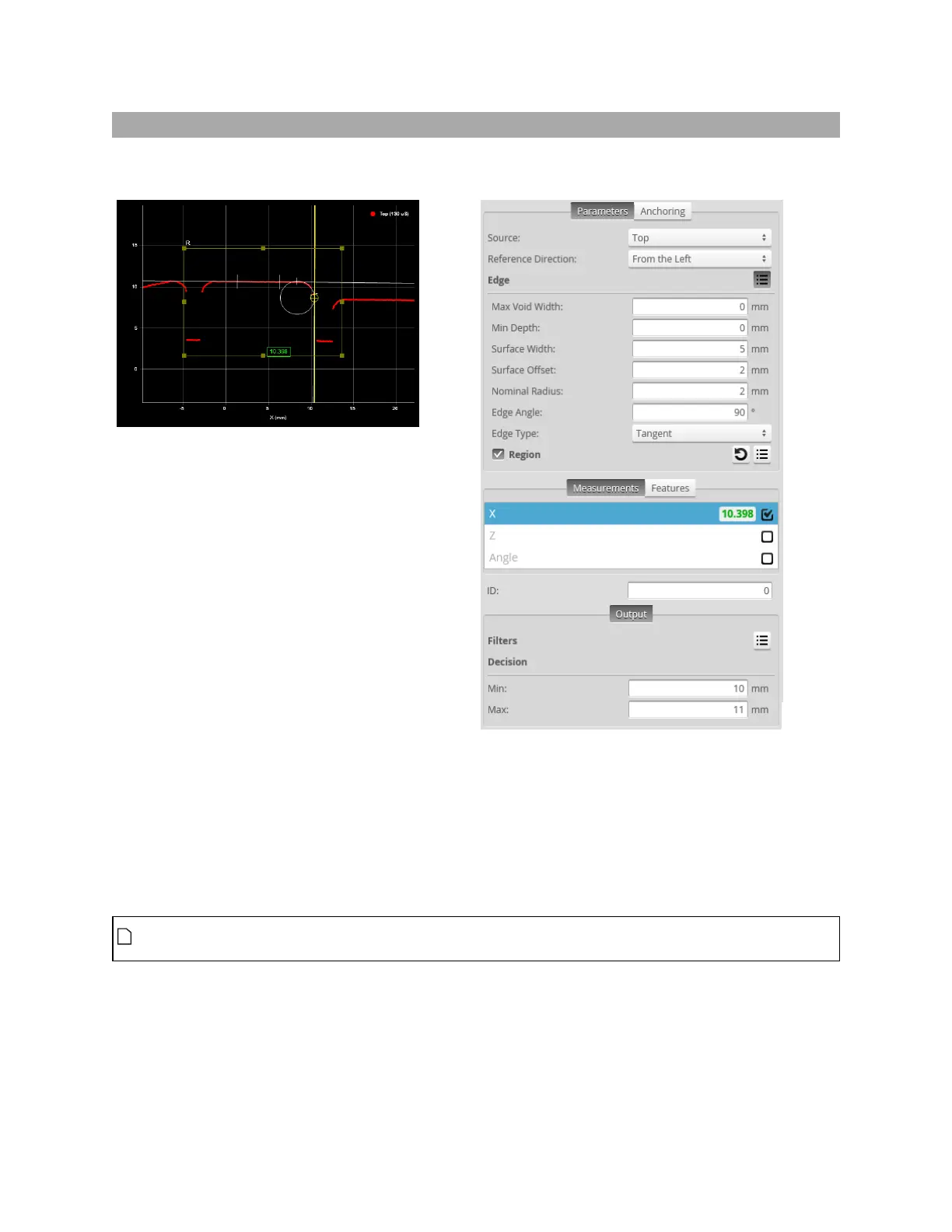

The Round Corner tool measures corners with a radius, returning the position of the edge of the corner
and the angle of adjacent surface with respect to the X axis.
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
The Round Corner tool uses a complex feature-locating algorithm to find the edge and return
measurements. The behavior of the algorithm can be adjusted by changing the parameters in the
measurement panel. See "Gap and Flush Algorithm" in the Gocator Measurement Tool Technical Manual
for a detailed explanation of the algorithm.
You must make sure that there are enough data points to define the edge (proper exposure,
etc.). If not, the algorithm will not function.
