Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 237

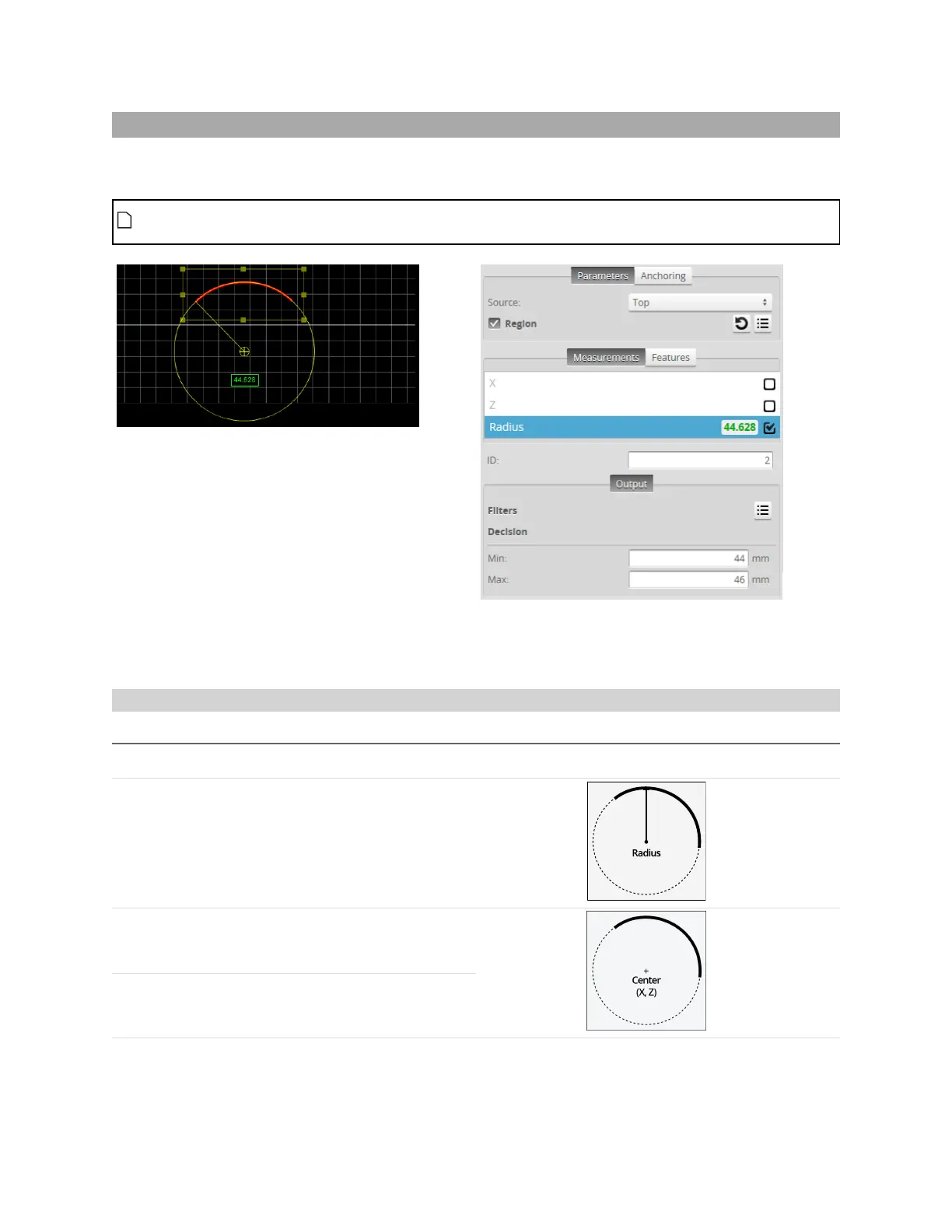

Circle
The Circle tool provides measurements that find the best-fitted circle to a profile and measure various
characteristics of the circle.
The tool may be unable to fit a circle to the profile when attempting the fit on a small number of
relatively collinear data points.
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
Measurements, Features, and Settings
Measurement Illustration
Radius
Measures the radius of the circle.
X
Finds the circle center position in the X axis.
Z
Finds the circle center position in the Z axis.
Measurements
To Next Page
