Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 259
Panel

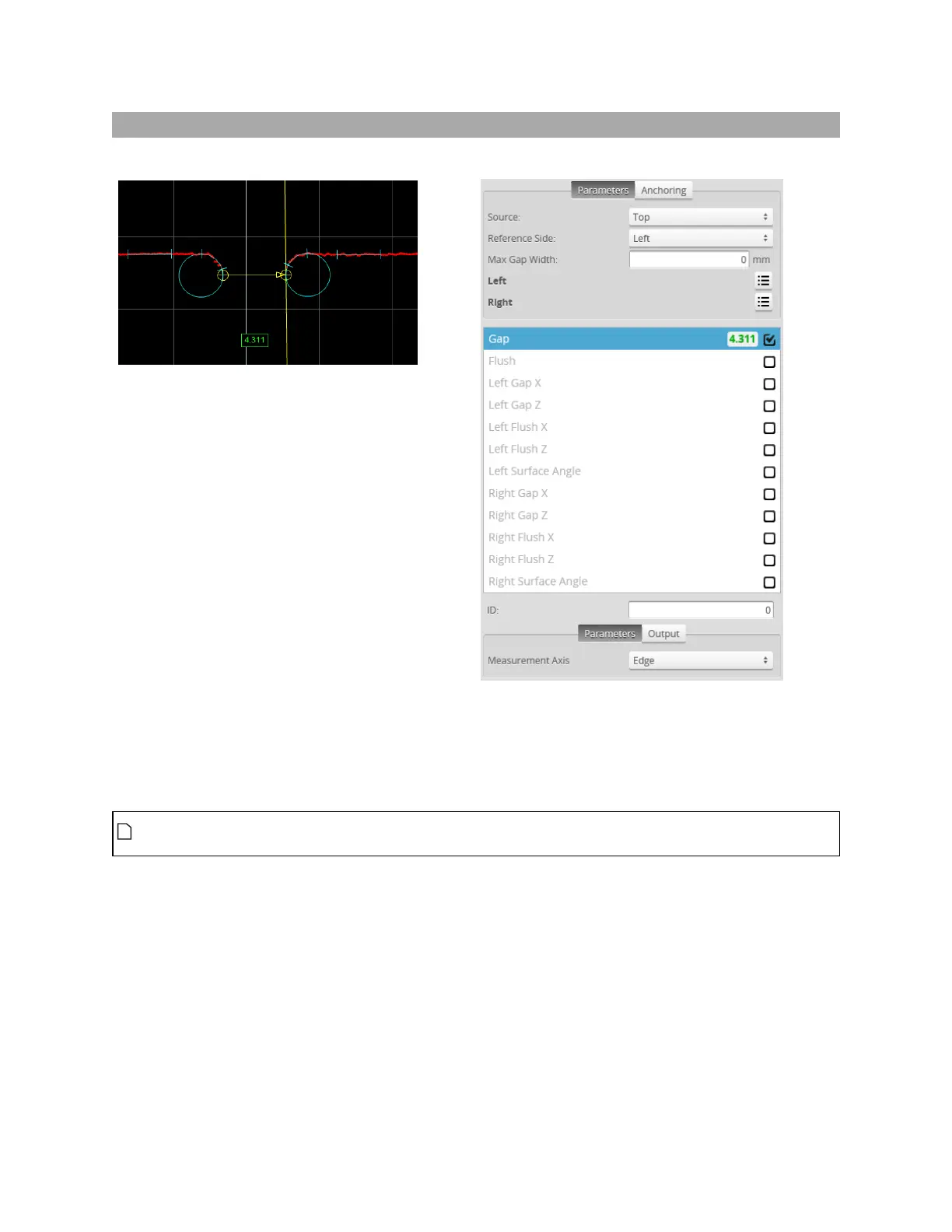

The Panel tool provides Gap and Flush measurements.
The Panel tool uses a complex feature-locating algorithm to find the gap or calculate flushness and
return measurements. The behavior of the algorithm can be adjusted by changing the parameters in the
measurement panel. See "Gap and Flush Algorithm" in the Gocator Measurement Tool Technical Manual
for a detailed explanation of the algorithm.
You must make sure that there are enough data points to define the edge in the profile, by
properly settng up exposure, etc. If not, the algorithm will not function.
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
