Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 381
Measurements, Data, and Settings

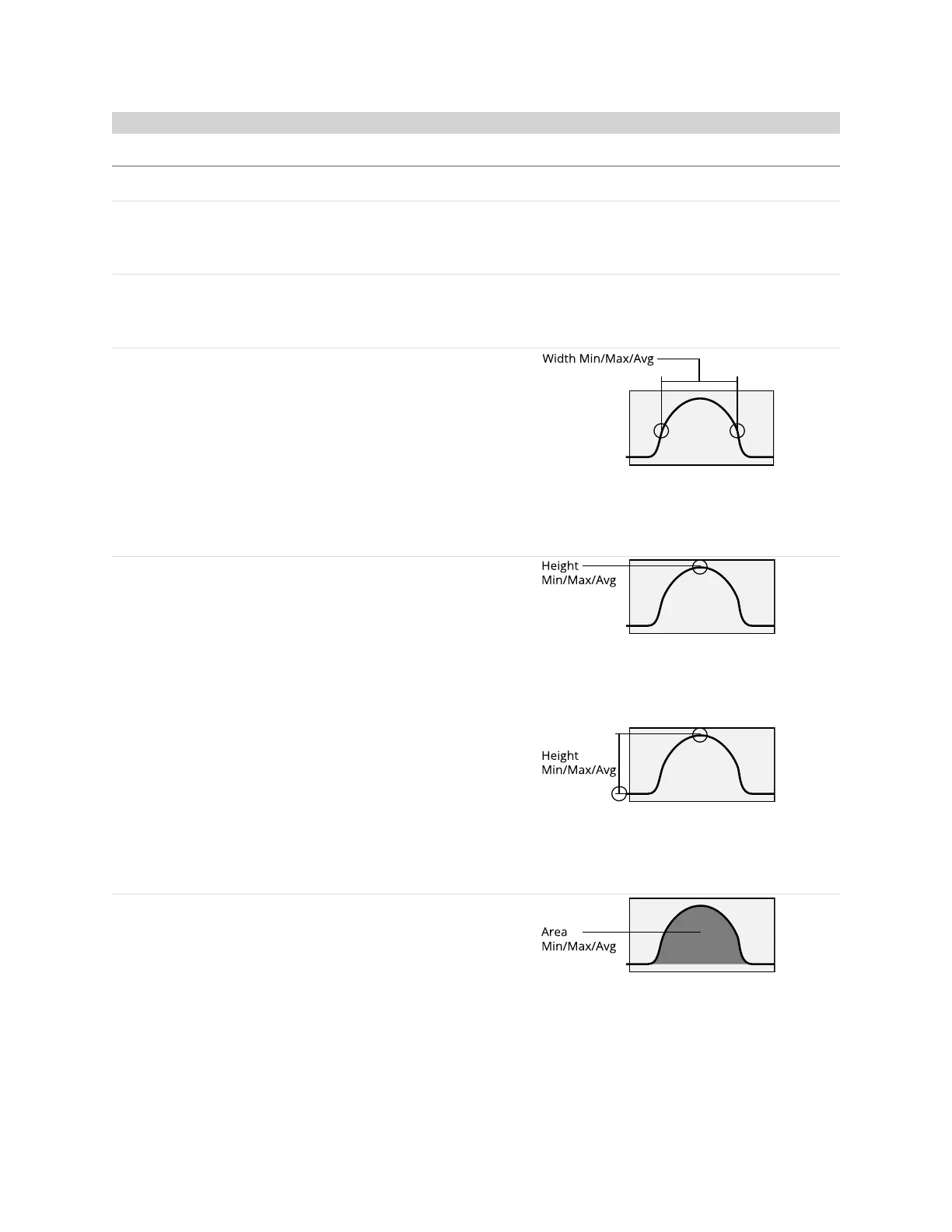

Measurement Illustration
OK Count
Returns the number of rulers along the path that pass all of
the criteria set in the tool's parameters.
NGCount
Returns the number of rulers along the track path that fail
the criteria set in the tool's parameters. (They are "no good.")
Width Min
Width Max
Width Avg
These measurements return the minimum, maximum, and
average width of the track.
Width measurements on a ruler
profile. The Track tool's settings determine
the locations of the "sides"of the track.
Height Min
Height Max
Height Avg
These measurements return the minimum, maximum, and
average height of the track at the center point.
When Height Mode is set to Absolute Height, the height
returned is the global height. When it is set to Step Height,
the height is relative to the surface next to the track.
Height measurements on a ruler
profile with Height Mode set to
Absolute Height.
Height measurements on a ruler
profile with Height Mode set to
Step Height.
Area Min
Area Max
Area Avg
These measurements return the minimum, maximum, and
average area under the rulers.
Area measurements under a
ruler profile.
Measurements
