Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 208

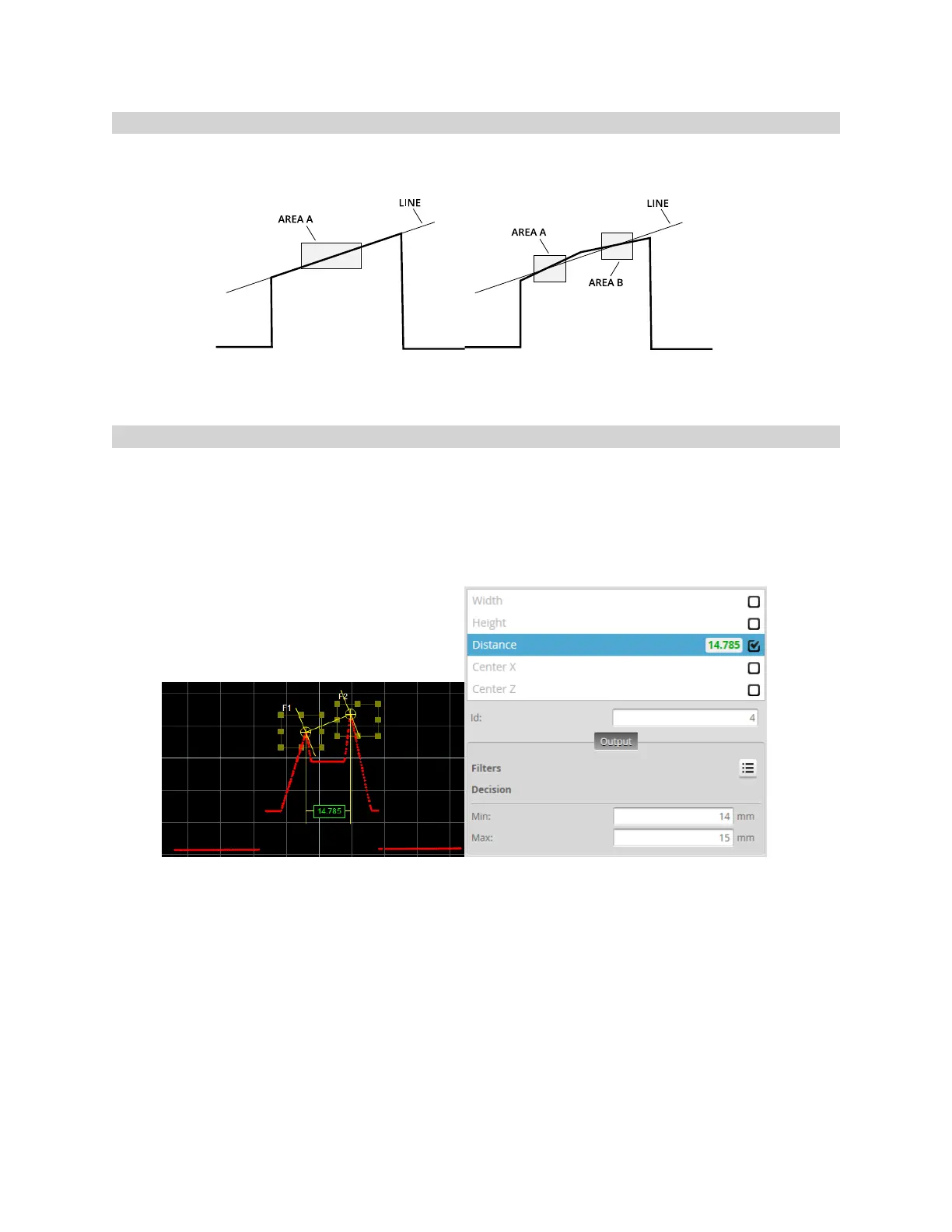

Fit Lines
Some measurements involve estimating lines in order to measure angles or intersection points. A fit line
can be calculated using data from either one or two fit areas.
A line can be defined using one or two areas. Two areas can be used to bypass discontinuity in a line
segment.
Decisions
Results from a measurement can be compared against minimum and maximum thresholds to generate
pass / fail decisions. The decision state is pass if a measurement value is between the minimum and
maximum threshold. In the data viewer and next to the measurement, these values are displayed in
green. Otherwise, the decision state is fail. In the user interface, these values are displayed in red.
All measurements provide decision settings under the Output tab.
Value (14.785) within decision thresholds (Min: 14, Max: 15). Decision: Pass
