Gocator Line Profile Sensors: User Manual
Getting Started • 38
Grounding When Using a DIN Rail (Master 810/2410)

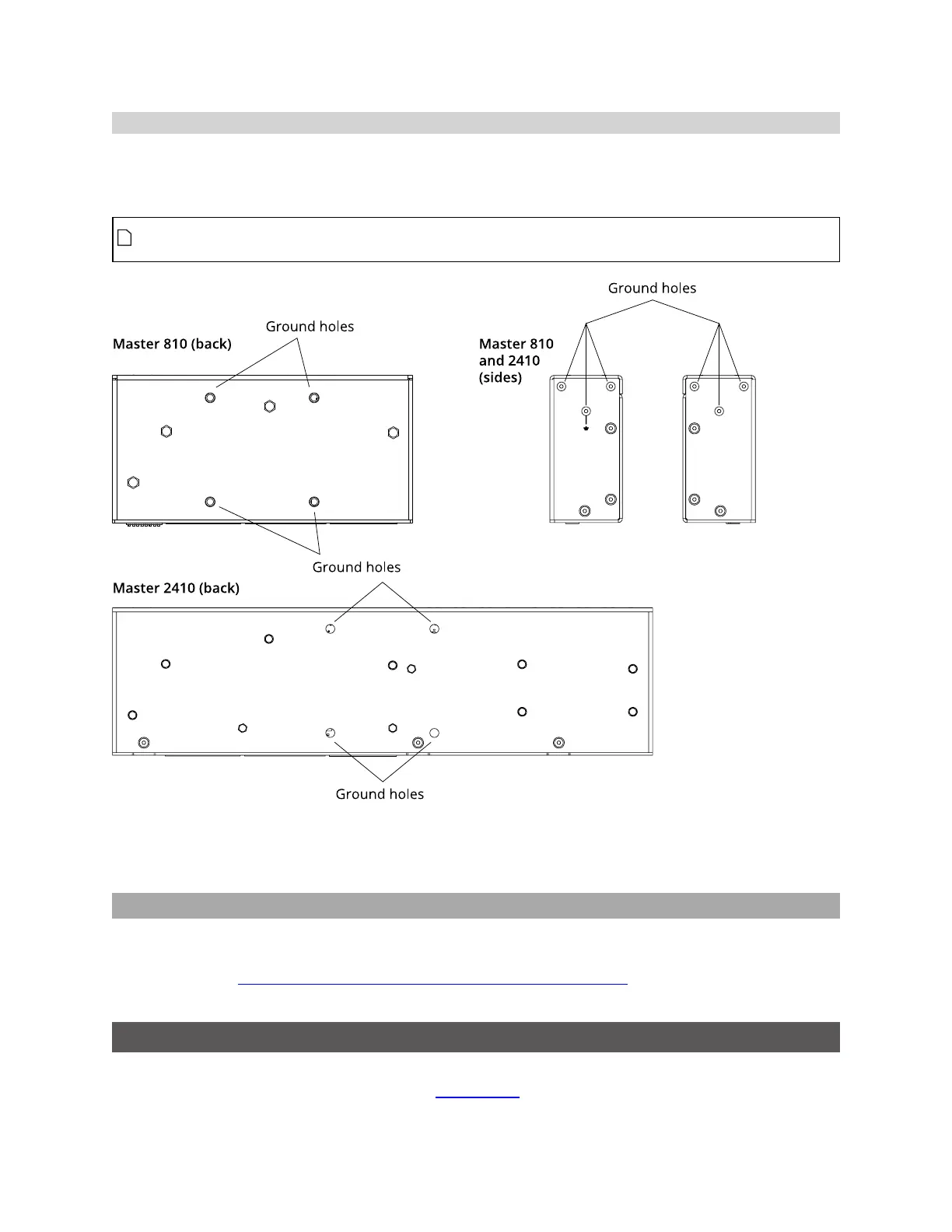

If you are using DIN rail adapters instead of the rack mount brackets, you must ensure that the Master is
properly grounded by connecting a ground cable to one of the holes indicated below. The holes accept
M4x5 screws.
You can use any of the ground holes shown below. However, LMIrecommends using the holes
indicated on the housing by a ground symbol.
An additional ground hole is provided on the rear of Master 810 and 2410 network controllers, indicated
by a ground symbol.
Additional Grounding Schemes
Potential differences and noise in a system caused by grounding issues can sometimes cause Gocator
sensors to reset or otherwise behave erratically. If you experience such issues, see the Gocator
Grounding Guide (https://downloads.lmi3d.com/gocator-grounding-guide) in the Download center for
additional grounding schemes.
Installing DIN Rail Clips: Master 810 or 2410
You can mount the Master 810 and 2410 using the included DINrail mounting clips with M4x8 flat
socket cap screws. The following DINrail clips (DINM12-RC) are included:
