Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 411

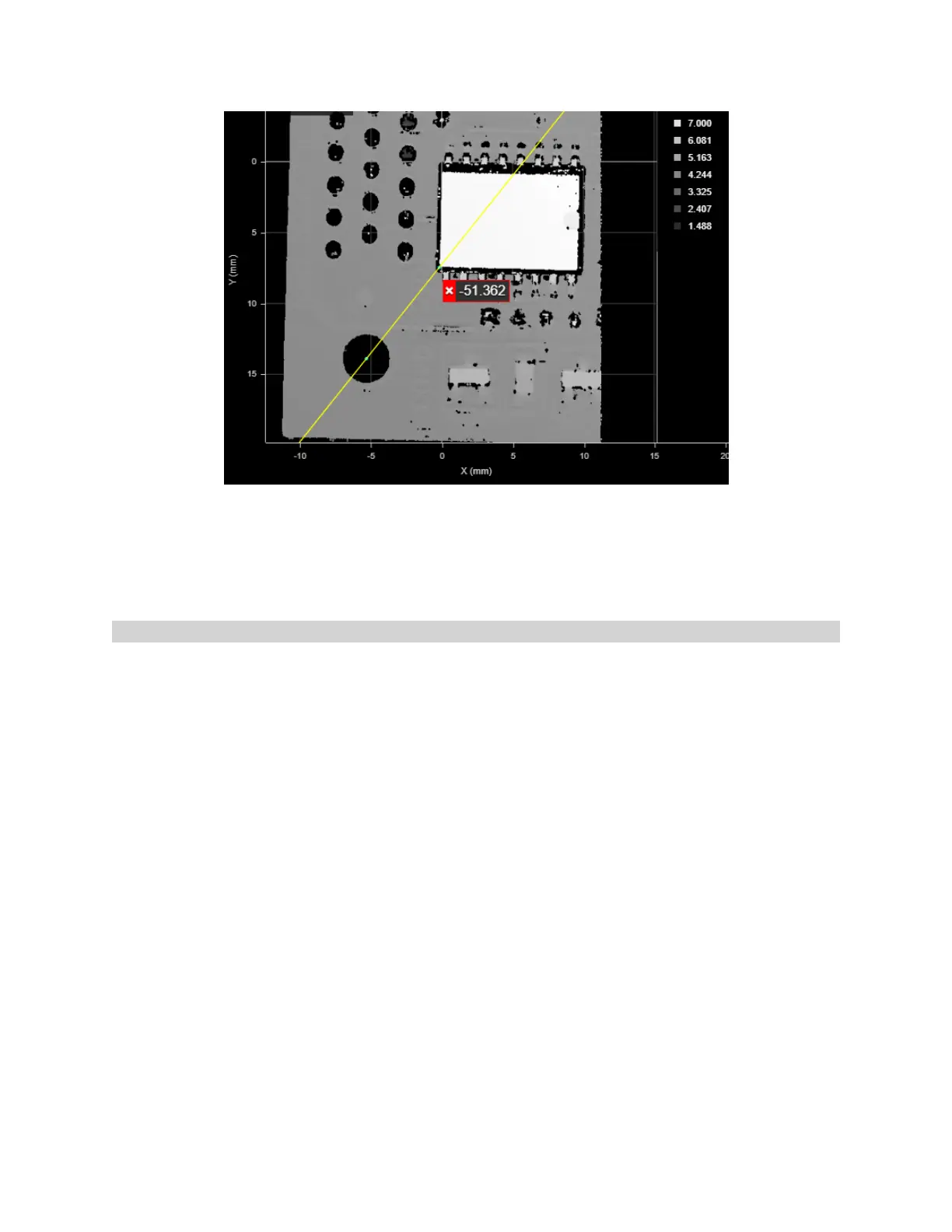

Aline between the center point of a hole and the corner of the chip.
(The corner is the intersect point resulting from the Feature Intersect tool,
taking the left vertical and lower horizontal line edges of the chip as input.)
The X, Y, and Zmeasurements return the midpoint of the line. The X, Y, and Z Angle measurements
return the angle of the line.
Perpendicular or Parallel Line from Point and Line
These types of output take a point and a line geometric feature as input to create another line.
For both of these types of line output, the X, Y, and Zmeasurements return the position of the point.
For perpendicular line output, the X, Y, and Zangle measurements return the angles of the line.
For parallel line output, the Zangle measurement returns the angle of the line; the X and Yangle
measurements both return 180.000.
In the following, the tool generates a roughly vertical line (yellow) perpendicular to the input line (cyan
line along the left edge of the large integrated circuit), passing through the input point (cyan dot at the
center of the hole).
