Gocator Line Profile Sensors: User Manual
Specifications • 743
Gocator 2400 Series
The Gocator 2400 series consists of the following models:
MODEL 2410 2420 2430 2440
Data Points / Profile
1710 1940 1500 1500
Linearity Z
(+/- % of MR)
0.015 0.006 0.01 0.01
Resolution Z (µm) 1.1 1.8 - 3.0 6 - 14 13 - 37
Resolution X (µm)
(Profile Data Interval)
5.8 - 6.2 14.0 - 16.5 37 - 57 90 - 130
Repeatability Z (µm) 0.2 0.4 0.8 1.2
Clearance
Distance (CD) (mm)
19 60 75 183
Measurement
Range (MR) (mm)
6 25 80 210
Field of View (FOV) (mm) 10 - 10 27 - 32 47 - 85 96 - 194
Laser Classes
3R (blue, 405 nm)
2M (blue, 405 nm)
3R (blue, 405 nm)
2M (blue, 405 nm
2 (red, 660 nm)
3R, 3B (red, 660 nm)
3R (red, 660 nm)
2, 3B (red, 660 nm)
Dimensions (mm) 44x90x145 44x90x145 44x90x155 44x90x190
Weight (kg) 0.88 0.88 1.0 1.2

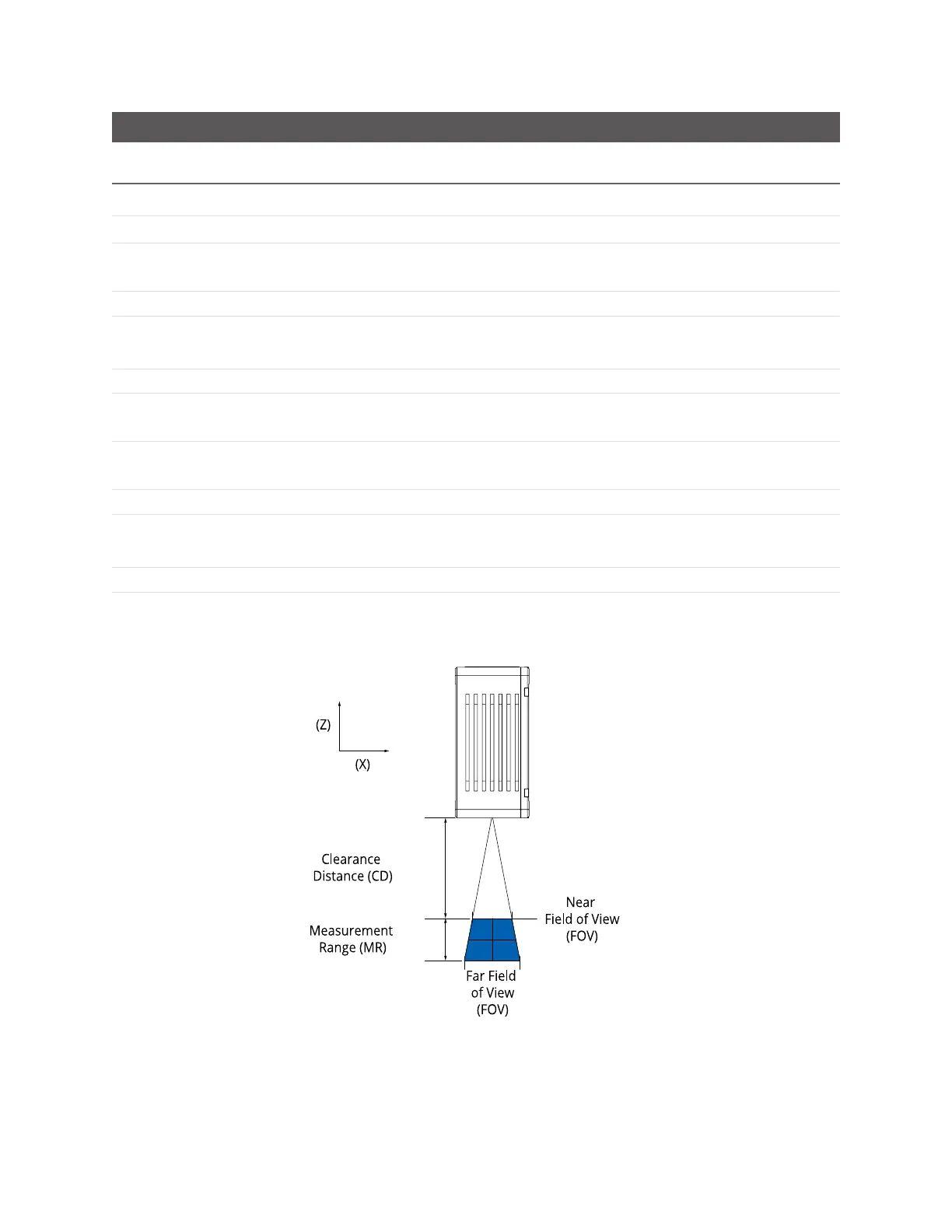

The following diagram illustrates some of the terms used in the table above.
Optical models, laser classes, and packages can be customized. Contact LMI for more details.
