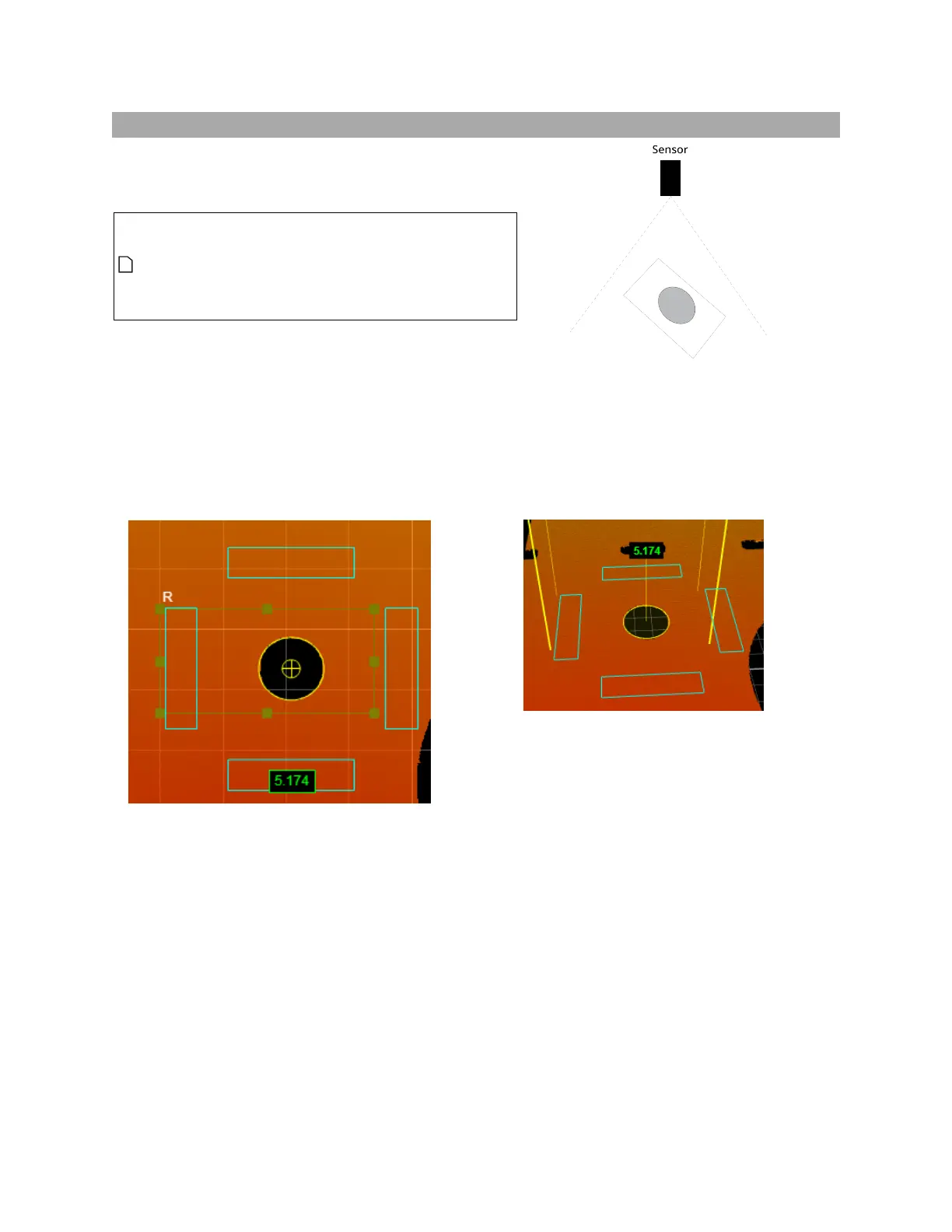

Hole
The Hole tool measures a circular opening within a region
of interest on the surface and returns its position and
radius.
The Hole tool does not search for or detect a
hole. The tool expects that a hole conforming
reasonably well to the defined parameters is
present and that it is on a sufficiently uniform
background.
The hole can be on a surface at an angle to the sensor.
The tool uses a complex feature-locating algorithm to find
a hold and then return measurements. See "Hole
Algorithm" in the Gocator Measurement Tool Technical
Manual for a detailed explanation of the algorithm. The
behavior of the algorithm can be adjusted by changing the
parameters in the measurement panel.
2DView
3DView
