Part matching is only available when Part has been selected.
2. Do one of the following:
l Scan a reference part. See Scan Setup and Alignment on page 115 for more information on setting up and
aligning Gocator. See Running a Standalone Sensor System on page 48 or Running a Dual-Sensor System on
page 49 for more information on running a system to scan a part.
l Locate some previously recorded replay data and load it. See Recording, Playback, and Measurement Sim-
ulation on page 83 and Downloading, Uploading, and Exporting Replay Data on page 87 for more inform-
ation on replay data.
3. Go to the Model page.

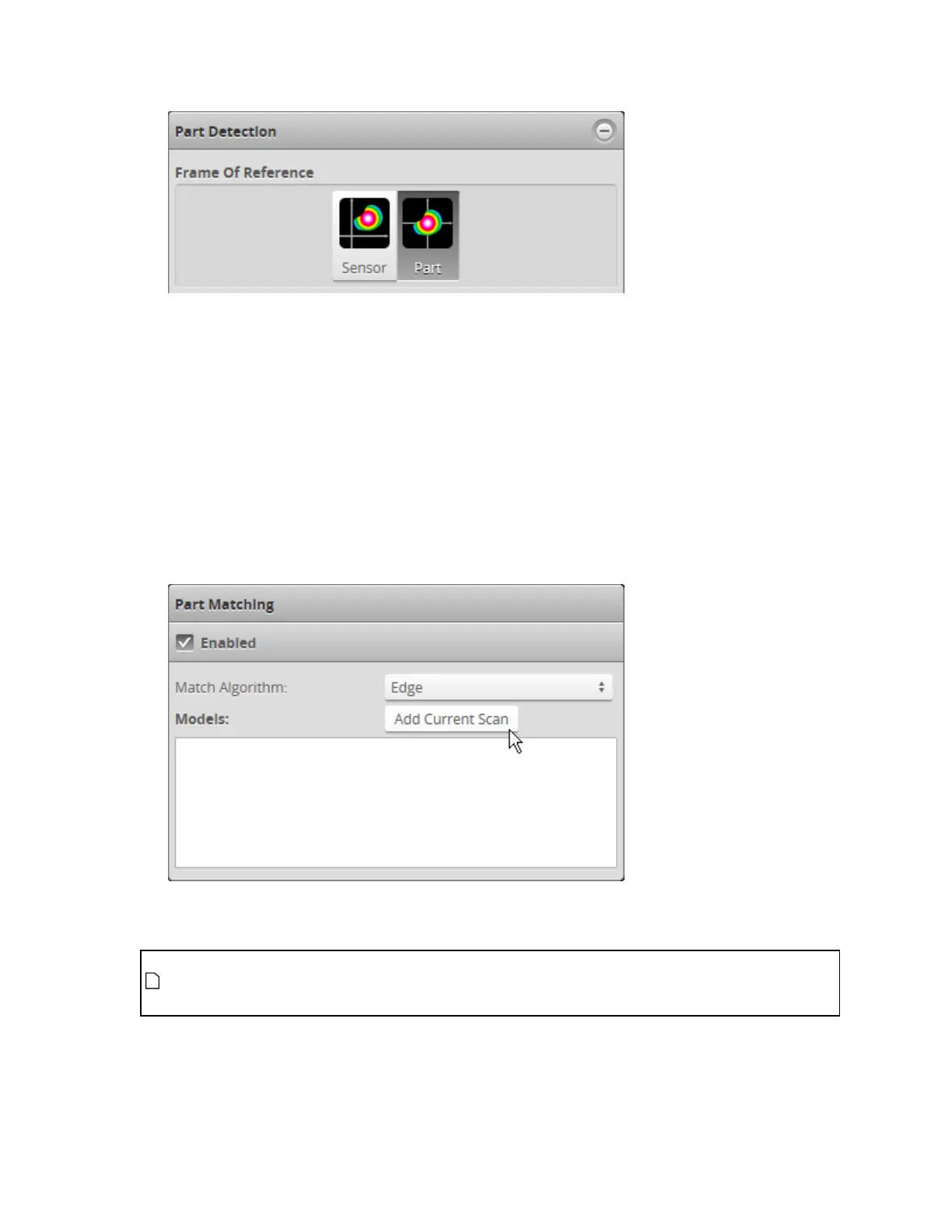

a. Make sure the Enabled option is checked in the Part Matching panel.
b. In the Match Algorithm drop-down, choose Edge.
4. Click Stop on the toolbar if the sensor is running.
5. Click Add Current Scan.
After adding the model, the Gocator will show that the match quality is 100%, because it is
in effect comparing the model to the scan that was used to create the model. This value can
be ignored.
6. In the Image Type drop-down, choose Heightmap or Intensity.
