Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 253

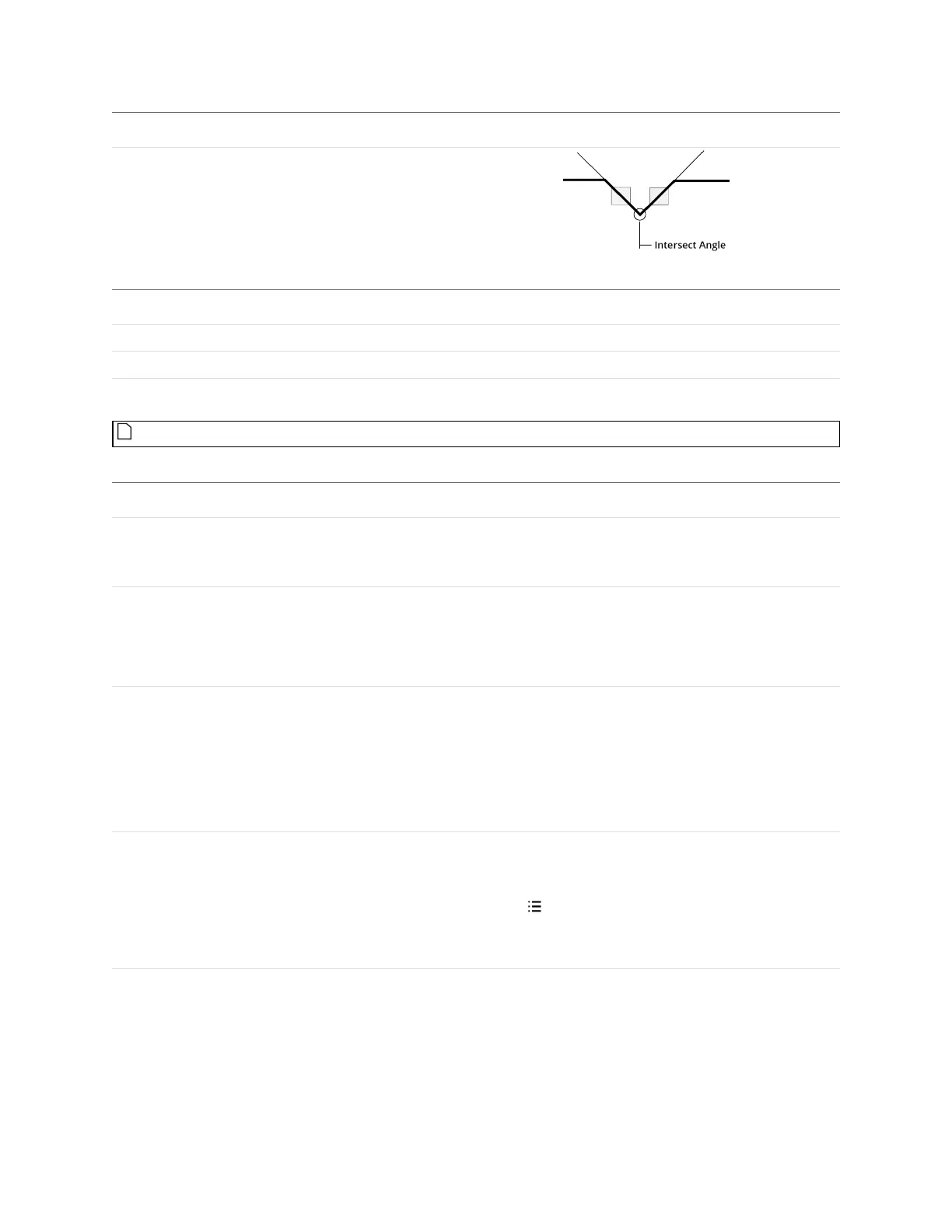

Measurement Illustration
Angle
Finds the angle subtended by two fitted lines.
Type Description
Intersect Point
The point of intersection.
Line
The intersect line.
Base Line
The base line.
Features
For more information on geometric features, see Geometric Features on page 206.
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 201.
Stream The data that the tool will apply measurements to.
In Surface mode, this setting is only displayed when a
section is defined on the surface data.
For more information on sections, see Sections on page 190.
Reference Type Determines the type of the reference line.
X-Axis:The reference line is set to the X axis.
Z-Axis:The reference line is set to the Z axis
Line:The reference line is defined manually using the Ref
Line parameter. One or two regions can be used to define
the line.
Line You can use one or two fit areas for the fit line. To set the
region (or regions) of the fit line, adjust it graphically in the
data viewer, or expand the feature using the expand
button ( ) and enter the values in the fields. For more
information on regions, see Regions on page 201.
For more information on fit lines, see Fit Lines on page 208.
