Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 290

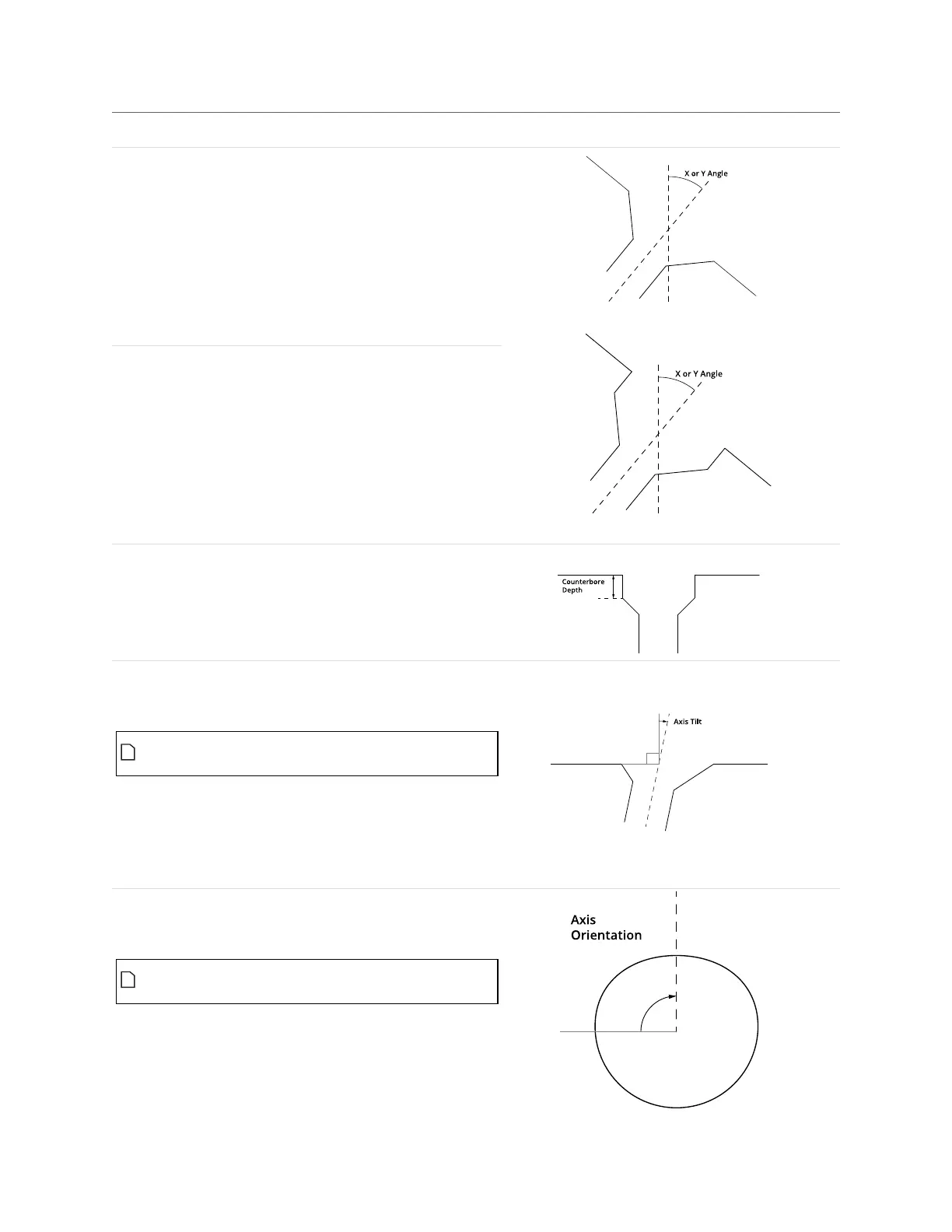

Measurement Illustration
X Angle
Determines the angle the hole relative to the Xaxis.
Cone
Counterbore
Y Angle
Determines the angle of the hole relative to the Y axis.
Counterbore Depth
Determines the depth of a counterbore.
Axis Tilt
Measures the tilt of the axis of the hole relative to the surface
surrounding the hole.
This measurement is not supported when
Shape is set to Counterbore.
Axis Orientation
Measures the angle of the axis of the hole around the normal of
the surface surrounding the hole, relative to the X axis.
This measurement is not supported when
Shape is set to Counterbore.
